395-058 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 58POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Color | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Read Out | Card Type | Contact Material | Termination | Mounting Type | Pitch | Pitch | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination Rows | Features | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Wire Wrap | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||

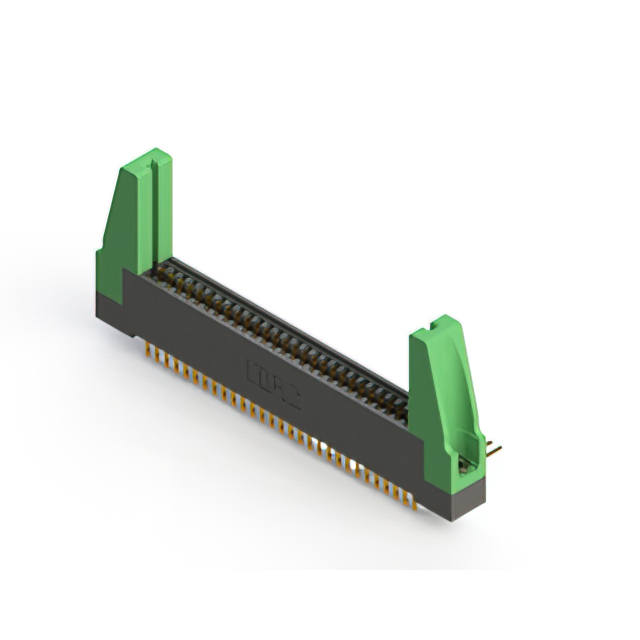

 EDAC Inc. | Polyester Thermoplastic | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 58 | Black | Female | 0.25 Ám | 10 Áin | 58 | -40 C | 105 ░C | Single | Non Specified - Single Edge | Copper Alloy | Solder | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Card Guides | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | 0.156 " | 3.96 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 58 | -40 C | 105 ░C | Single | Non Specified - Single Edge | Copper Alloy | Wire Wrap | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 4-40 Threaded Insert Top Mount Opening | 58 | Black | Female | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | Board Edge Straddle Mount | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 58 | Black | Female | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | Right Angle Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | 0.128 " | 3.25 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | Board Edge Straddle Mount | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 58 | -40 C | 105 ░C | Single | Non Specified - Single Edge | Copper Alloy | Wire Wrap | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | |||
EDAC Inc. | Polyester Thermoplastic | Cantilever | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 58 | -40 C | 105 ░C | Single | Non Specified - Single Edge | Copper Alloy | Solder | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 58 | Black | Female | 0.25 Ám | 10 Áin | 29 | -40 C | 105 ░C | 2 | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | Board Edge Straddle Mount | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | ||||
 EDAC Inc. | Polyester Thermoplastic | Cantilever | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 58 | Black | Female | 0.25 Ám | 10 Áin | 58 | -40 C | 105 ░C | Single | Non Specified - Single Edge | Copper Alloy | Wire Wrap | Through Hole | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 |
