087797 Series

Manufacturer: Molex

Catalog

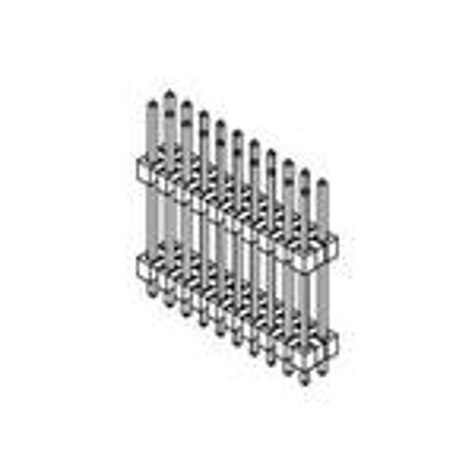

HEADERS & WIRE HOUSINGS 2.54MM C-GRID DRDW T/H HDR 26CKT

Part	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Row Spacing [x]	Row Spacing	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]	Color	Pitch [x]	Pitch [x]	Length - Tail	Length - Tail	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Tail	Length - Stack Height [z]	Length - Stack Height [z]
Molex 0877972600	9 mm	0.354 in	Through Hole	0.1 in	2.54 mm	2	0.76 in	19.3 mm	Black	2.54 mm	0.1 in	3.05 mm	0.12 in	Solder	0.38 Ám	15 Áin	26	0.286 in	7.264 mm	Gold
Molex 0877971800	9.35 mm	0.368 in	Through Hole	0.1 in	2.54 mm	2			Black	2.54 mm	0.1 in			Solder			18	0.48 in	12.2 mm	Gold	6.426 mm	0.253 in	Flash	1.102 in	28 mm
Molex 0877970500			Through Hole	0.1 in	2.54 mm	2	0.73 in	18.542 mm	Black	2.54 mm	0.1 in			Solder	0.38 Ám	15 Áin	50	0.255 in	6.477 mm	Gold	2.667 mm	0.105 in
Molex 0877971002	7.62 mm	0.3 in	Through Hole	0.1 in	2.54 mm	2	0.73 in	18.542 mm	Black	2.54 mm	0.1 in		2.8 mm	Solder	0.51 Ám	20 Áin	10	0.32 in	8.128 mm	Gold						0.11 in
Molex 0877972000			Through Hole	0.1 in	2.54 mm	2	1.22 "	31 mm	Black	2.54 mm	0.1 in			Solder	0.76 µm	30 µin	20	0.334 in	8.484 mm	Gold	8.484 mm	0.334 in					0.551 in	14 mm
Molex 0877970026	7.8 mm	0.307 in	Through Hole	0.1 in	2.54 mm	2	1.03 in	26.162 mm	Black	2.54 mm	0.1 in		2.8 mm	Solder	0.25 Ám	10 Áin	26	0.613 in	15.57 mm	Gold						0.11 in
