0707-0 Series

Catalog

CONN PIN RCPT .015-.022 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Termination	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Contact Material

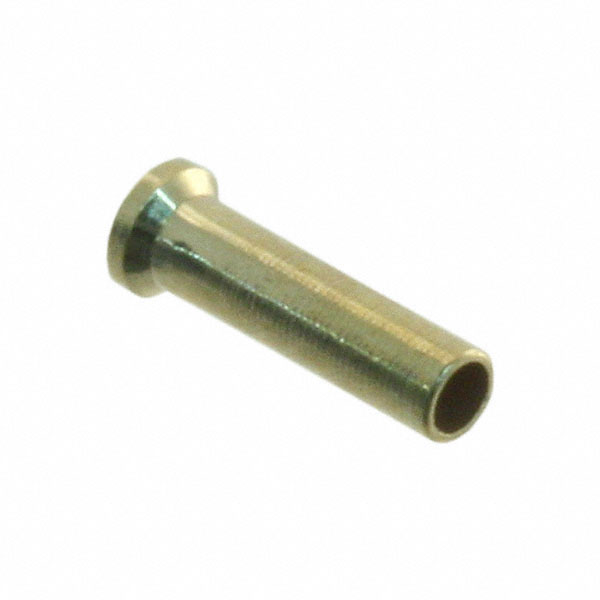

Mill-Max Manufacturing Corp. 0707-0-15-15-12-27-10-0	-55 C	125 °C	1.3 mm	0.051 in	0.068 in	1.73 mm	Gold	0.2 in	5.08 mm	Solder	30 Áin	0.76 Ám	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 0707-0-15-80-12-84-10-0	-55 C	125 °C	1.3 mm	0.051 in	0.068 in	1.73 mm	Tin	0.2 in	5.08 mm	Solder	100 µin	2.54 µm	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	Beryllium Copper
Mill-Max Manufacturing Corp. 0707-0-15-15-12-14-10-0	-55 C	125 °C	1.3 mm	0.051 in	0.068 in	1.73 mm	Gold	0.2 in	5.08 mm	Solder	10 Áin	0.25 Ám	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	Beryllium Copper
