TB6552 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
IC MOTOR DRIVER 2.7V-5.5V 16WQFN
| Part | Applications | Mounting Type | Motor Type - AC, DC | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Supplier Device Package | Function | Interface | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Configuration | Technology | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

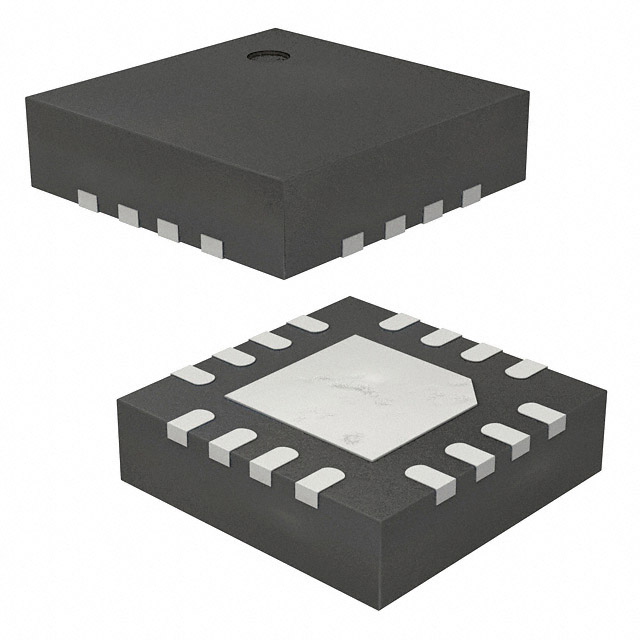

 Toshiba Semiconductor and Storage | General Purpose | Surface Mount | Brushed DC | 800 mA | 85 C | -20 °C | 2.5 V | 13.5 V | 16-WQFN (3x3) | Driver - Fully Integrated Control and Power Stage | PWM Serial | 16-WFQFN Exposed Pad | 5.5 V | 2.7 V | Half Bridge (4) | Power MOSFET | ||
 Toshiba Semiconductor and Storage | General Purpose | Surface Mount | Brushed DC | 800 mA | 85 C | -20 °C | 2.5 V | 13.5 V | 16-SSOP | Driver - Fully Integrated Control and Power Stage | PWM Serial | 16-LSSOP | 5.5 V | 2.7 V | Half Bridge (4) | Power MOSFET | 0.173 in | 4.4 mm |
