2004-12 Series

Catalog

ACCESSORY, ORANGE, WAGO TOPJOB S 2004 SERIES SNAP-ON TERMINAL BLOCKS, END & INTERMEDIATE PLATE

Part	Type	For Use With/Related Products	Stripping Length [Min]	Stripping Length [Max]	Material - Insulation	Color	Number of Positions	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Terminal - Width [y]	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Current - UL	Voltage - UL	Current - IEC

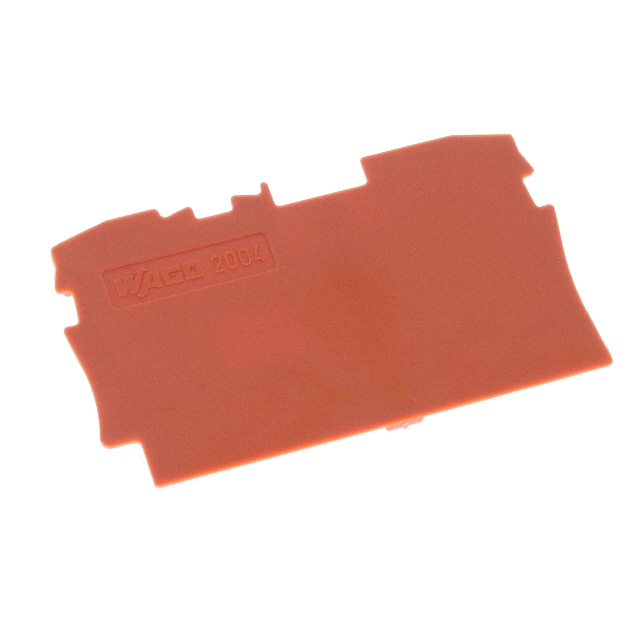

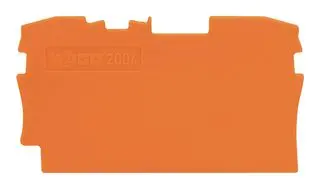

WAGO Corporation 2004-1292	End Plate	TOPJOB®S Series
WAGO Corporation 2004-1207	Ground Earth		11 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Green Yellow	2	Push In Spring	14 AWG	10 AWG	6.2 mm	1	6 mm²	1.5 mm²
WAGO Corporation 2004-1291	End Plate	TOPJOB®S Series				Gray

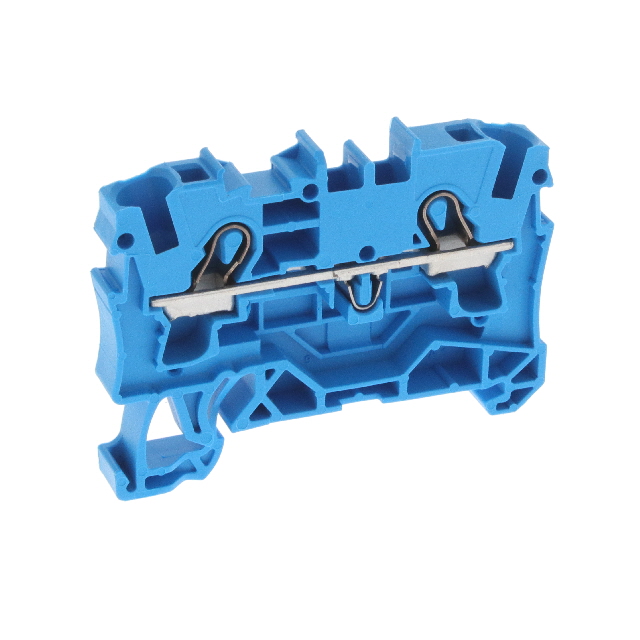

WAGO Corporation 2004-1204	Feed Through		11 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Blue	2	Push In Spring	14 AWG	10 AWG	6.2 mm	1	6 mm²	1.5 mm²	800 V	30 A	600 V	41 A

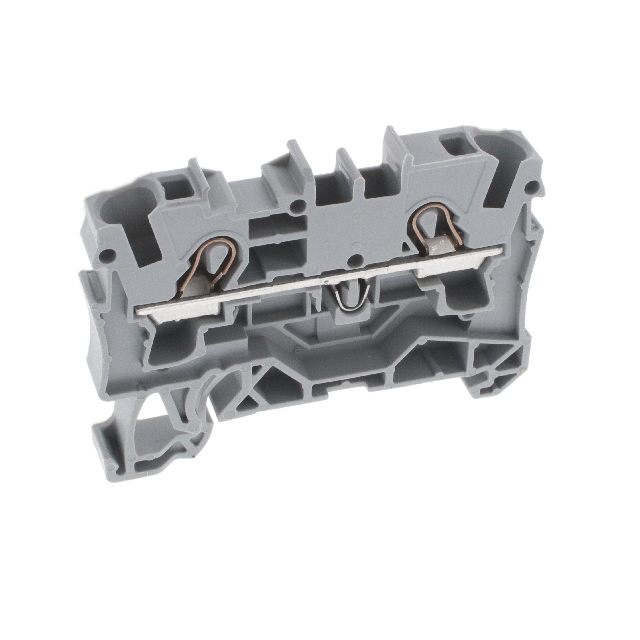

WAGO Corporation 2004-1201	Feed Through		11 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Gray	2	Push In Spring	14 AWG	10 AWG	6.2 mm	1	6 mm²	1.5 mm²	800 V	30 A	600 V	41 A
