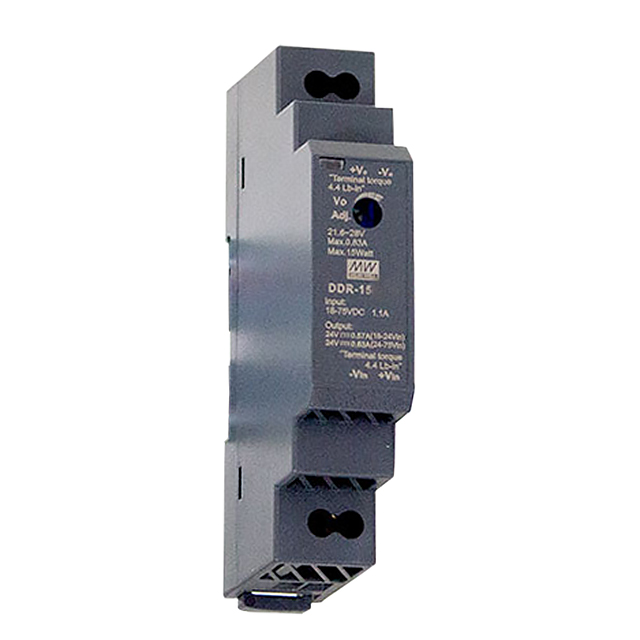

DDR-15 Series

Catalog

DC/DC DIN RAIL SUPPLY 15V 15W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Applications	Approval Agency	DC Voltage - Input (Max) [Max]	Input Type	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Efficiency	DC Voltage - Input (Min) [Min]
MEAN WELL USA Inc. DDR-15L-15	-40 °C	85 °C	1 A	4000 V	1	ITE (Commercial)	CE EAC	75 V	DC	15 W	15 V	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Adjustable Output	86 %	18 V
MEAN WELL USA Inc. DDR-15L-24	-40 °C	85 °C	630 mA	4000 V	1	ITE (Commercial)	CE EAC	75 V	DC	15 W	24 V	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Adjustable Output	87 %	18 V
MEAN WELL USA Inc. DDR-15L-12	-40 °C	85 °C	1.25 A	4000 V	1	ITE (Commercial)	CE EAC	75 V	DC	15 W	12 V	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Adjustable Output	86 %	18 V
MEAN WELL USA Inc. DDR-15G-12	-40 °C	85 °C	1.25 A	4000 V	1	ITE (Commercial)	CE EAC	36 V	DC	15 W	12 V	0.69 "	54.5 mm	90 mm	3.54 "	2.15 "	17.5 mm	Adjustable Output	85 %	9 V
