094103 Series
Manufacturer: Molex
Beta
⌘K

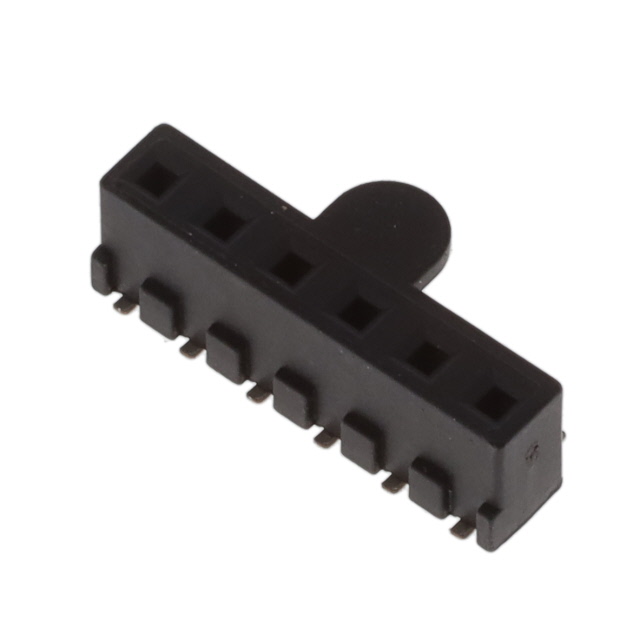

CONN RCPT 6POS 0.079 TIN SMD
| Part | Contact Finish - Post | Connector Type | Contact Type | Contact Material | Termination | Number of Positions Loaded | Insulation Material | Number of Rows | Number of Positions | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Features | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Tin | Receptacle | Female Socket | Phosphor Bronze | Solder | All | Glass Filled Nylon 4/6 Polyamide (PA46) | 1 | 6 | 0.079 in | 2 mm | Square | Surface Mount | 157.5 Áin | 4 Ám | Black | Push-Pull | -40 °C | 105 ░C | 125 VAC | Pick and Place | 0.152 in | 3.85 mm | 157.5 µin | 4 µm |
