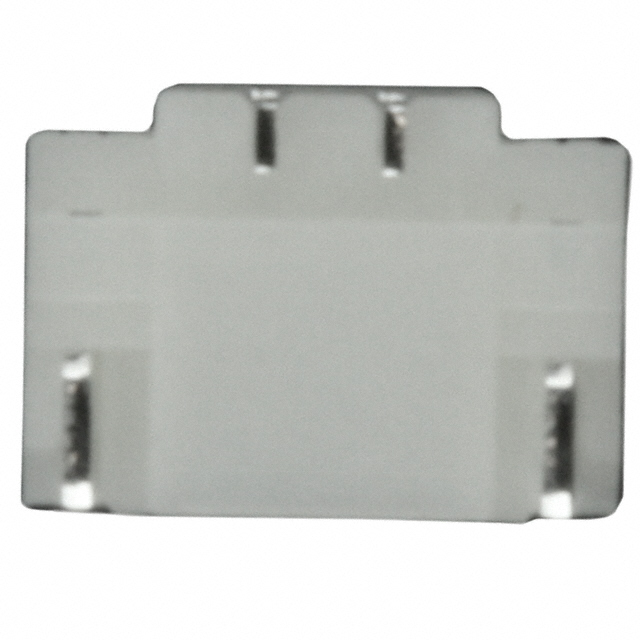

SM02B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 2POS 0.8MM
| Part | Insulation Color | Mounting Type | Shrouding | Current Rating (Amps) | Contact Material | Fastening Type | Number of Rows | Connector Type | Material Flammability Rating | Contact Finish - Post | Contact Shape | Features | Number of Positions | Contact Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height [z] | Insulation Height [z] | Insulation Material | Style | Voltage Rating | Pitch - Mating | Pitch - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Right Angle Surface Mount | Shrouded - 4 Wall | 0.2 A 0.5 A | Copper Alloy | Push-Pull | 1 | Header | UL94 V-0 | Tin | Rectangular | Solder Retention | 2 | Outer Shroud Contact | All | 85 °C | -25 °C | 0.069 in | 1.75 mm | Nylon Polyamide (PA) | Board to Cable/Wire | 30 VDC | 0.8 mm | 0.031 in | Solder |
