T50N Series

Catalog

SPIRAL WRAP, .50" (12.7MM) X 250, NYLON ROHS COMPLIANT: YES

Part	Abrasion Protection	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Material Flammability Rating	Type	Wall Thickness	Wall Thickness	Color	Length	Length	Heat Protection	Material
Panduit Corp T50N-TL	Abrasion Resistant	65 °C	-40 °C	76.2 m	250 ft	0.5 in	12.7 mm	4 in	101.6 mm	Harness	UL94 HB	Spiral Wrap	0.032 in	0.81 mm	Natural
Panduit Corp T50N-C	Abrasion Resistant	65 °C	-40 °C			0.5 in	12.7 mm	4 in	101.6 mm	Harness	UL94 HB	Spiral Wrap	0.032 in	0.81 mm	Natural	100 ft	30.48 m

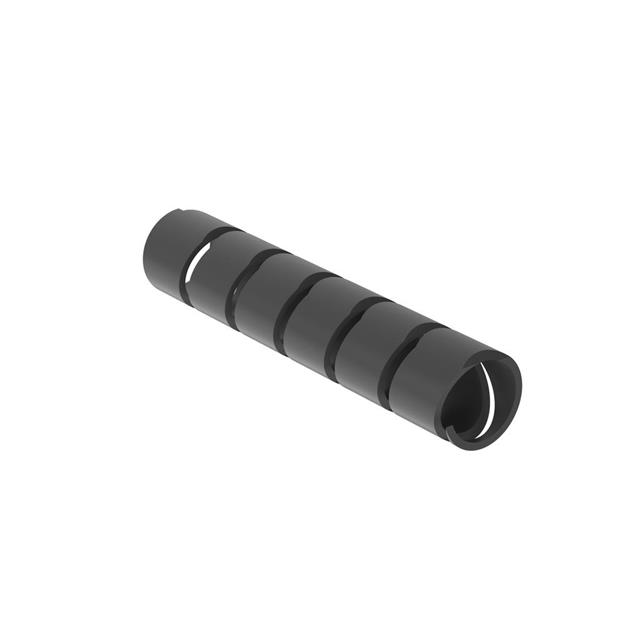

Panduit Corp T50NZFR-C20	Abrasion Resistant	65 °C	-40 °C			0.5 in	12.7 mm	4 in	101.6 mm	Harness	UL94 V-0	Spiral Wrap	0.032 in	0.81 mm	Black	100 ft	30.48 m	Flame Retardant	Halogen Free Nylon 6 Polyamide (PA6)
