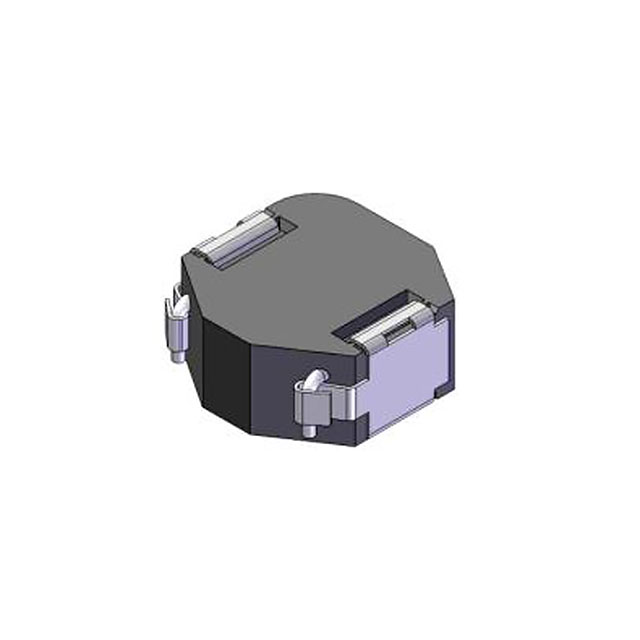

DFEG12060D Series
Manufacturer: Murata Electronics
Beta
⌘K
FIXED IND 8.2UH 8A 17 MOHM SMD
| Part | Ratings | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Inductance Frequency - Test | Shielding | DC Resistance (DCR) [Max] | Current Rating (Amps) | Material - Core | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Current - Saturation (Isat) | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 8.2 µH | 100 kHz | Shielded | 17 mOhm | 8 A | Iron Powder | 20 % | 6 mm | 0.236 " | 11 A | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in | |
Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 2.2 µH | 100 kHz | Shielded | 16 A | Iron Powder | 20 % | 6 mm | 0.236 " | 21 A | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in | 4.4 mOhm | |
Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 3.3 µH | 100 kHz | Shielded | 6.3 mOhm | 13 A | Iron Powder | 20 % | 6 mm | 0.236 " | 18 A | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in | |
Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 15 µH | 100 kHz | Shielded | 6.6 A | Iron Powder | 20 % | 6 mm | 0.236 " | 7.4 A | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in | 28 mOhm | |
Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 5.6 µH | 100 kHz | Shielded | 11 mOhm | 10 A | Iron Powder | 20 % | 6 mm | 0.236 " | 13 A | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in | |
Murata Electronics | AEC-Q200 | Surface Mount | 125 °C | -40 C | 1 µH | 100 kHz | Shielded | 2.9 mOhm | 20 A | Iron Powder | 20 % | 6 mm | 0.236 " | Nonstandard | 13 mm | 12.6 mm | 0.512 " | 0.496 in |
