EFC8811R Series

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12 V, 27 A, 3.2 mΩ

Catalog

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12 V, 27 A, 3.2 mΩ

Part	Package / Case	Configuration	Power - Max [Max]	Technology	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature	FET Feature	FET Feature

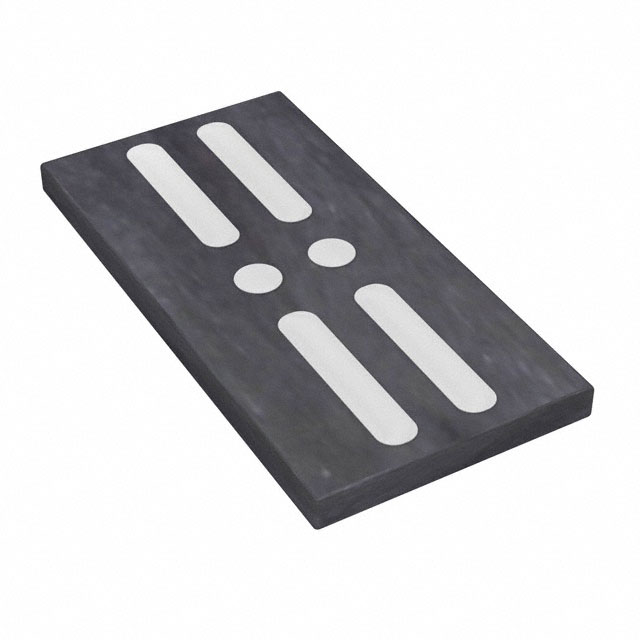

ON Semiconductor EFC8811R-TF	6-SMD No Lead	2 N-Channel (Dual) Common Drain	2.5 W	MOSFET (Metal Oxide)	Surface Mount	3.54	1.77	6-CSP	150 °C	Logic Level Gate	2.5 V

Catalog

Dual N-Channel Power MOSFET for 1-Cell Lithium-ion Battery Protection, 12 V, 27 A, 3.2 mΩ

Key Features

• 2.5 V drive

• ESD Diode-Protected Gate

• Common-Drain Type

• RoHS compliance

• 2 kV ESD HBM

Description

This Power MOSFET features a low on-state resistance. This device is suitable for applications such as power switches of portable machines. Best suited for 1-cell lithium-ion battery applications.
