86130205 Series

Catalog

CONN HEADER VERT 20POS 2.54MM

Part	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]	Insulation Material	Number of Positions	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Fastening Type	Mounting Type	Number of Positions Loaded	Contact Shape	Contact Type	Style	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]

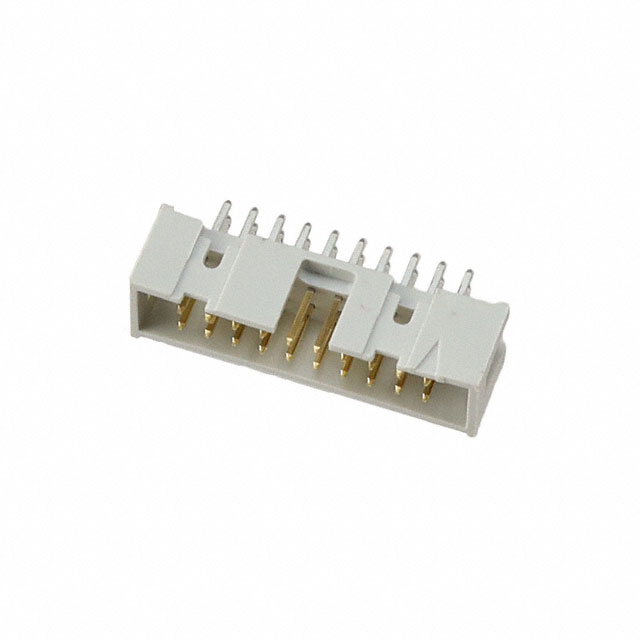

Amphenol ICC (FCI) 86130205014345E1LF	0.366 in	9.3 mm	Gray	Gold or Gold-Palladium	6.1 mm	0.24 in	Polybutylene Terephthalate (PBT)	20	Tin	4.35 mm	0.171 in	2	Copper Alloy	Shrouded - 4 Wall	-55 °C	125 °C	Header	Keying Slot	Push-Pull	Through Hole	All	Circular	Male Pin	Board to Cable/Wire	Solder	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in
Amphenol ICC (FCI) 86130205023365E1LF			Gray	Gold or Gold-Palladium	6.1 mm	0.24 in	Polybutylene Terephthalate (PBT)	20	Tin	2.79 mm		2	Copper Alloy	Shrouded - 4 Wall	-55 °C	125 °C	Header	Keying Slot	Push-Pull	Through Hole Right Angle	All	Circular	Male Pin	Board to Cable/Wire	Solder	UL94 V-0	0.1 in	2.54 mm	2.54 mm	0.1 in	0.35 in	8.89 mm	0.11 in
