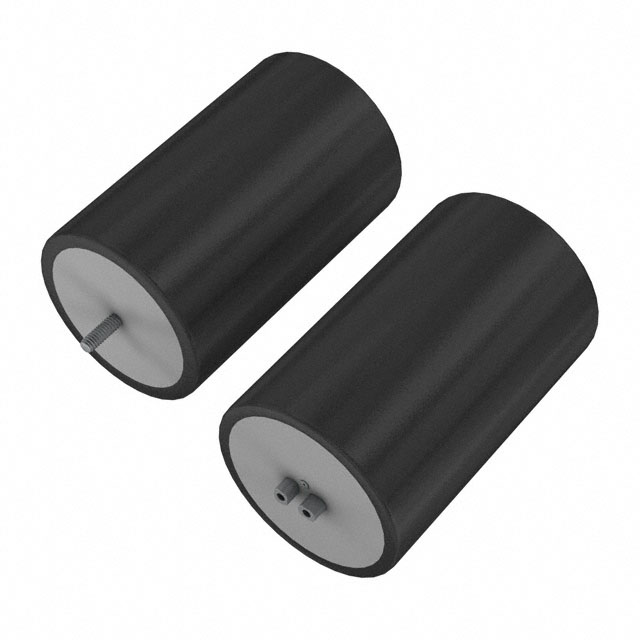

PEH200Y Series

Manufacturer: KEMET

Catalog

ELEC CAP, 470UF, 450V, SCREW ROHS COMPLIANT: YES

Part	Polarization	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Mounting Type	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance	Height - Seated (Max)
KEMET PEH200YH3470MU2	Polar	Radial Can - Screw Terminals	450 V	51.6 mm	2.031 in	17.5 A	120 mOhm	85 °C	-40 C	20 %	0.866 "	22 mm	470 µF	2.933 in	74.5 mm	12000 Hrs	Chassis Mount	General Purpose	4.5 A

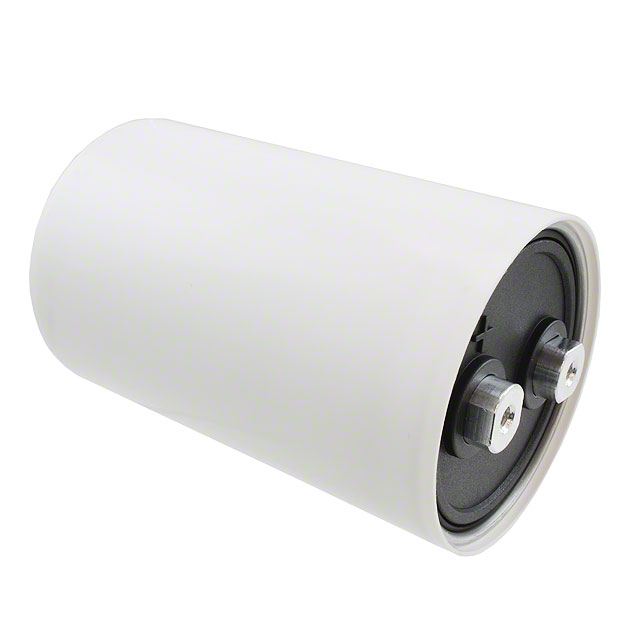

KEMET PEH200YU433CMB2	Polar	Radial Can - Screw Terminals	450 V	76.6 mm	3.016 "		30 mOhm	85 °C	-40 C	20 %	1.26 in	32 mm	3.3 mF			19000 Hrs	Chassis Mount	General Purpose		119 mm	4.685 in	17 mOhms
KEMET PEH200YC3220MU2	Polar	Radial Can - Screw Terminals	450 V	36.6 mm	1.441 in		240 mOhm	85 °C	-40 C	20 %	0.512 "	13 mm	220 µF	2.894 in		10000 Hrs	Chassis Mount	General Purpose	2.5 A				73.5 mm
KEMET PEH200YY4470MB2	Polar	Radial Can - Screw Terminals	450 V	91.6 mm	3.606 "		16 mOhm	85 °C	-40 C	20 %	1.26 in	32 mm	4700 µF	5.768 "	146.5 mm	29000 Hrs	Chassis Mount	General Purpose	18.9 A			9 mOhms
KEMET PEH200YK4100MU2	Polar	Radial Can - Screw Terminals	450 V	51.6 mm	2.031 in	23.6 A	60 mOhm	85 °C	-40 C	20 %	1.122 in	28.5 mm	1000 µF			12000 Hrs	Chassis Mount	General Purpose	6.7 A	103.5 mm	4.075 in
