395-024 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 24POS 0.100
...
| Part | Termination Rows [custom] | Material - Insulation | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Card Type | Number of Positions | Color | Gender | Read Out | Number of Positions/Bay/Row | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Pitch | Pitch | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Wire Wrap | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 24 | Black | Female | Single | 24 | Wire Wrap | 0.128 " | 3.25 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 24 | Black | Female | Single | 24 | Solder | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 1 | 1 | |||

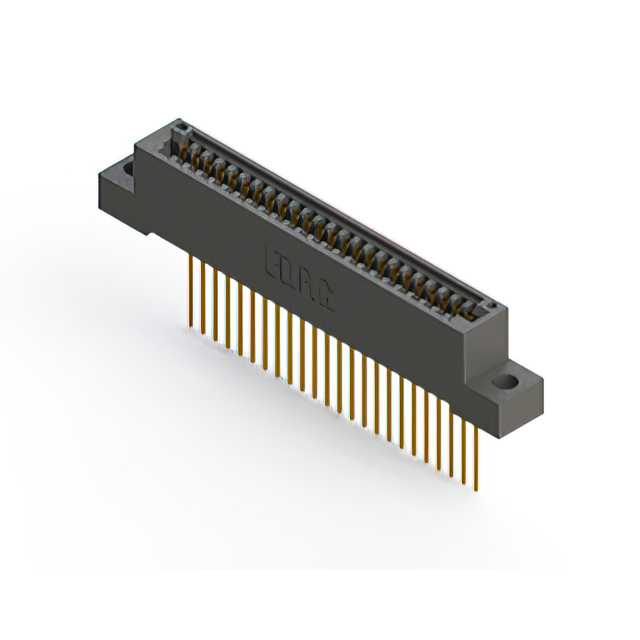

 EDAC Inc. | Polyester Thermoplastic | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 24 | Black | Female | Single | 24 | Wire Wrap | 0.156 " | 3.96 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | 1 | 1 | ||||

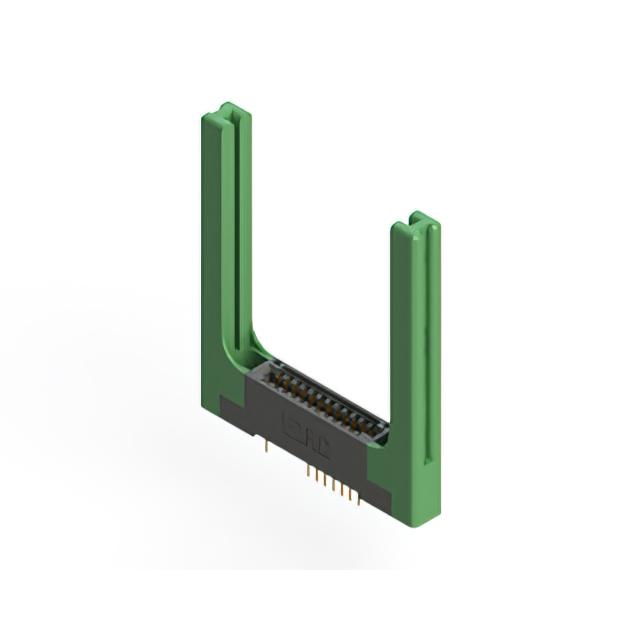

 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Solder | 0.156 " | 3.96 mm | Right Angle Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Wire Wrap | 0.156 " | 3.96 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Solder | 0.128 " | 3.25 mm | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | ||||

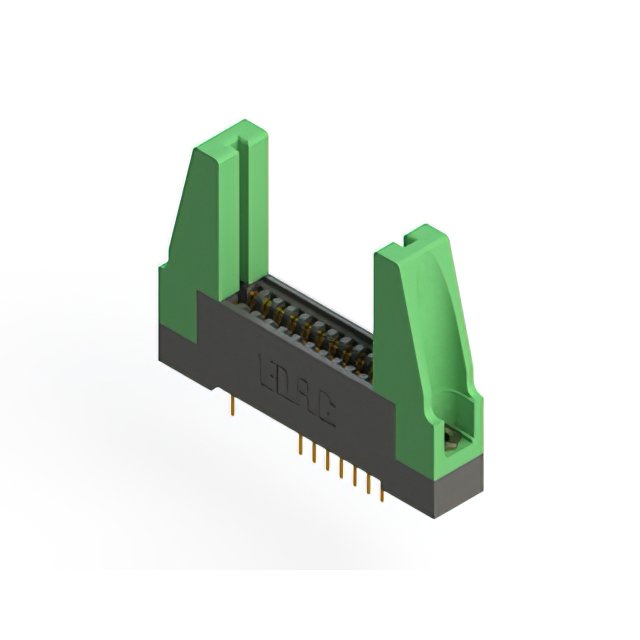

 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | 24 | Black | Female | Dual | 12 | Solder | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | 0.1 " | 2.54 mm | Gold | -40 C | 105 ░C | Card Extender |
