PTN78060W Series

3 A, Wide Input Non-Isolated, Wide Negative Output Adjust Module

Catalog

3 A, Wide Input Non-Isolated, Wide Negative Output Adjust Module

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Features	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [y]

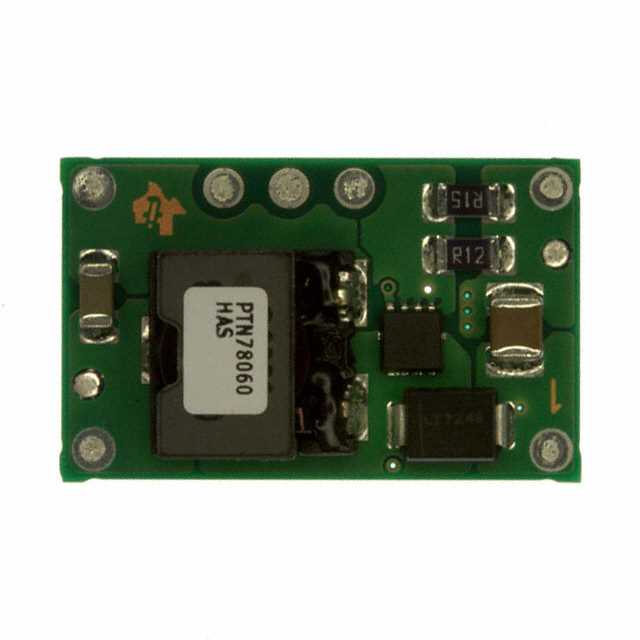

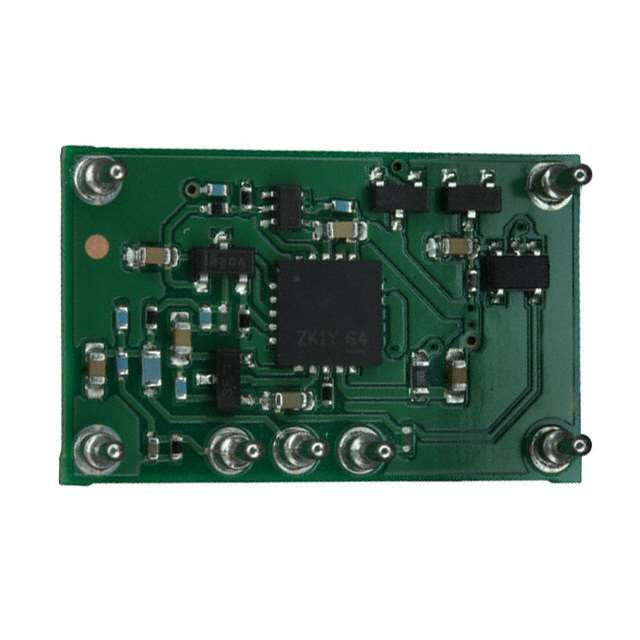

Texas Instruments PTN78060AAH	1 in	0.62 "	25.4 mm	0.35 "	15.7 mm	8.9 mm	7-DIP Module	UVLO	28.7 V	-15 V	-3 V	Non-Isolated PoL Module	Through Hole	1	85 °C	-40 °C	9 V	88 %	3 A	ITE (Commercial)

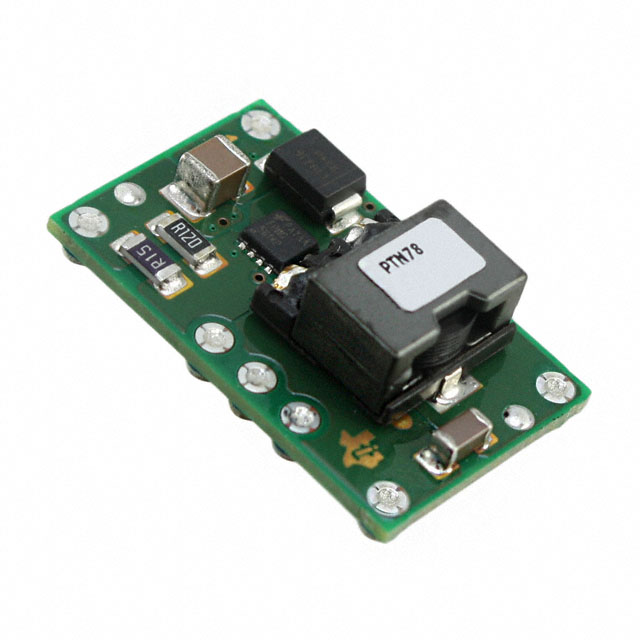

Texas Instruments PTN78060WAZT	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP Remote On/Off UVLO	36 V	2.5 V	12.6 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	7 V	94 %	3 A	ITE (Commercial)
Texas Instruments PTN78060WAST	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP Remote On/Off UVLO	36 V	2.5 V	12.6 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	7 V	94 %	3 A	ITE (Commercial)

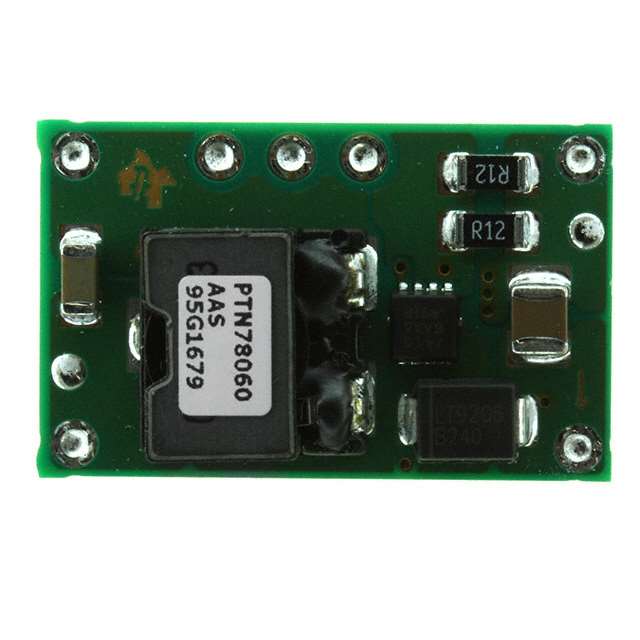

Texas Instruments PTN78060AAS	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP UVLO	28.7 V	-15 V	-3 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	9 V	88 %	3 A	ITE (Commercial)

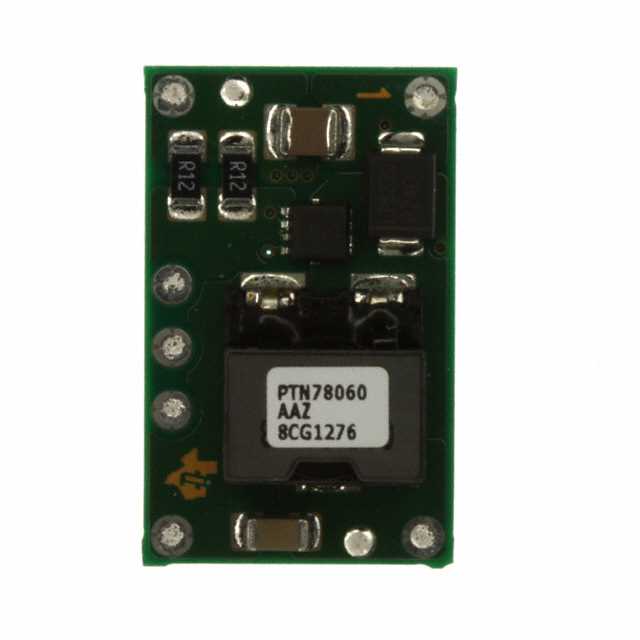

Texas Instruments PTN78060AAZT	1.04 in	0.66 "	26.4 mm	0.35 "			7-SMD Module	OCP OTP UVLO	28.7 V	-15 V	-3.3 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	9 V	87 %	3 A	ITE (Commercial)	8.9 mm	16.8 mm

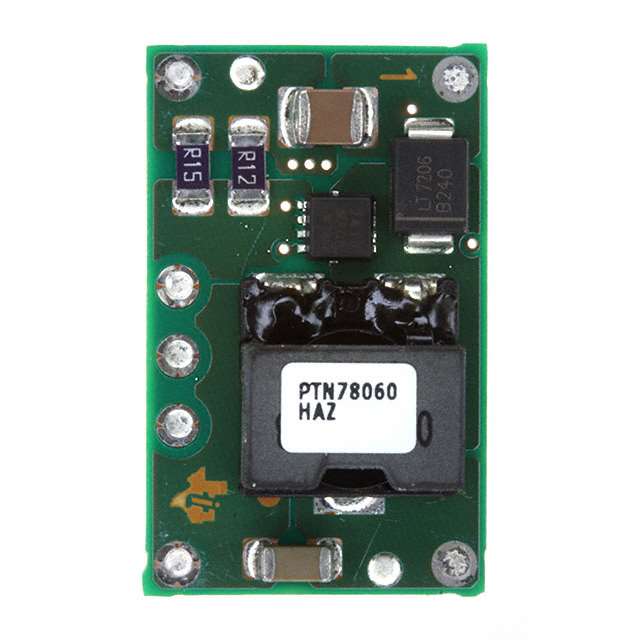

Texas Instruments PTN78060HAZ	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP Remote On/Off UVLO	36 V	11.85 V	22 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	15 V	96 %	3 A	ITE (Commercial)
Texas Instruments PTN78060HAS	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP Remote On/Off UVLO	36 V	11.85 V	22 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	15 V	96 %	3 A	ITE (Commercial)
Texas Instruments PTN78060AAST	1.04 in	0.66 "	26.4 mm	0.35 "			7-SMD Module	OCP OTP UVLO	28.7 V	-15 V	-3.3 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	9 V	87 %	3 A	ITE (Commercial)	8.9 mm	16.8 mm
Texas Instruments PTN78060WAZ	1 in	0.62 "	25.4 mm	0.38 in	15.7 mm	9.7 mm	7-SMD Module	OCP OTP Remote On/Off UVLO	36 V	2.5 V	12.6 V	Non-Isolated PoL Module	Surface Mount	1	85 °C	-40 °C	7 V	94 %	3 A	ITE (Commercial)

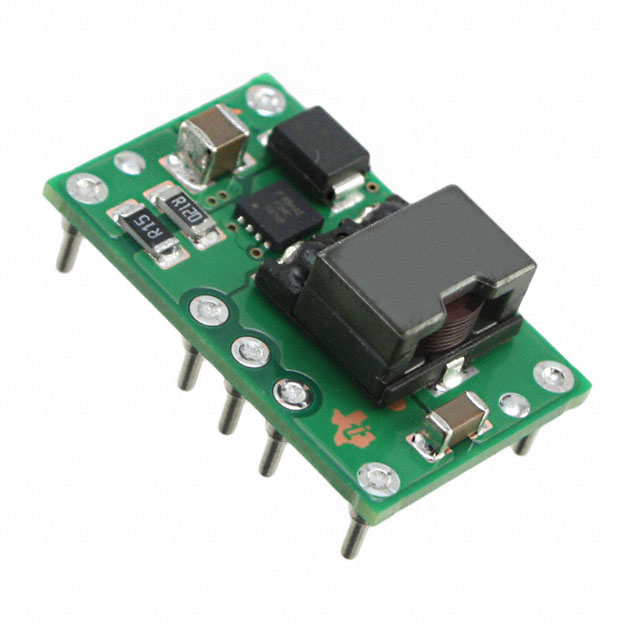

Texas Instruments PTN78060WAH	1 in	0.62 "	25.4 mm	0.35 "	15.7 mm	8.9 mm	7-DIP Module	UVLO	36 V	2.5 V	12.6 V	Non-Isolated PoL Module	Through Hole	1	85 °C	-40 °C	7 V	94 %	3 A	ITE (Commercial)

Catalog

3 A, Wide Input Non-Isolated, Wide Negative Output Adjust Module

Key Features

• 3-A Output CurrentWide-Input Voltage (7 V to 36 V) / (15 V to 36 V)Wide-Output Voltage Adjust (2.5 V to 12.6 V) / (11.85 V to 22 V)High Efficiency (Up to 96%)On/Off InhibitUnder-Voltage LockoutOutput Current LimitOvertemperature ShutdownOperating Temperature: -40°C to 85°CSurface Mount Package AvailableAPPLICATIONSGeneral-Purpose, Industrial Controls, HVAC SystemsTest and Measurement, Medical InstrumentationAC/DC Adaptors, Vehicles, Marine, and Avionics3-A Output CurrentWide-Input Voltage (7 V to 36 V) / (15 V to 36 V)Wide-Output Voltage Adjust (2.5 V to 12.6 V) / (11.85 V to 22 V)High Efficiency (Up to 96%)On/Off InhibitUnder-Voltage LockoutOutput Current LimitOvertemperature ShutdownOperating Temperature: -40°C to 85°CSurface Mount Package AvailableAPPLICATIONSGeneral-Purpose, Industrial Controls, HVAC SystemsTest and Measurement, Medical InstrumentationAC/DC Adaptors, Vehicles, Marine, and Avionics

Description

The PTN78060 is a series of high-efficiency, step-down integrated switching regulators (ISR), that represent the third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of products. In new designs, the PTN78060 series may also be considered in place of the PT6200, PT6210, and PT6300 series of single in-line pin (SIP) products. In all cases, the PTN78060 has either similar or improved electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating from a wide-input voltage range, the PTN78060 provides high-efficiency, step-down voltage conversion for loads of up to 3 A. The output voltage can be set to any value over a wide adjustment range using a single external resistor. The PTN78060W may be set to any value within the range, 2.5 V to 12.6 V, and the PTN78060H from 11.85 V to 22 V. The output voltage of the PTN78060W can be as little as 2 V lower than the input, allowing operation down to 7 V, with an output voltage of 5 V. The output voltage of the PTN78060H can be as little as 3 V lower than the input, allowing operation down to 15 V, with an output voltage of 12 V. The PTN78060 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is well suited to a wide variety of general-purpose applications that operate off 12-V, 24-V, or 28-V DC power. The PTN78060 is a series of high-efficiency, step-down integrated switching regulators (ISR), that represent the third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of products. In new designs, the PTN78060 series may also be considered in place of the PT6200, PT6210, and PT6300 series of single in-line pin (SIP) products. In all cases, the PTN78060 has either similar or improved electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating from a wide-input voltage range, the PTN78060 provides high-efficiency, step-down voltage conversion for loads of up to 3 A. The output voltage can be set to any value over a wide adjustment range using a single external resistor. The PTN78060W may be set to any value within the range, 2.5 V to 12.6 V, and the PTN78060H from 11.85 V to 22 V. The output voltage of the PTN78060W can be as little as 2 V lower than the input, allowing operation down to 7 V, with an output voltage of 5 V. The output voltage of the PTN78060H can be as little as 3 V lower than the input, allowing operation down to 15 V, with an output voltage of 12 V. The PTN78060 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is well suited to a wide variety of general-purpose applications that operate off 12-V, 24-V, or 28-V DC power.
