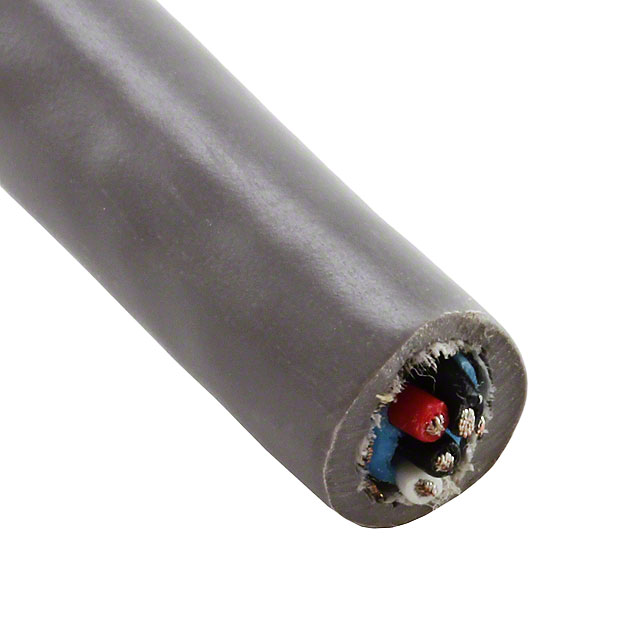

86702CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 22AWG 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Material | Shield Type | Jacket (Insulation) Material | Features | Ratings | Cable Type | Jacket Color | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 1.016 mm | 0.04 in | 22 AWG | 4 | 300 VDC | 0.287 in | 7.29 mm | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire | ISO 10993 UL Style 2661 | Multi-Pair | Slate | 304.8 m | 1000 ft | 34 AWG | 19 |
