DME-12 Series
Manufacturer: Adam Tech
Beta
⌘K

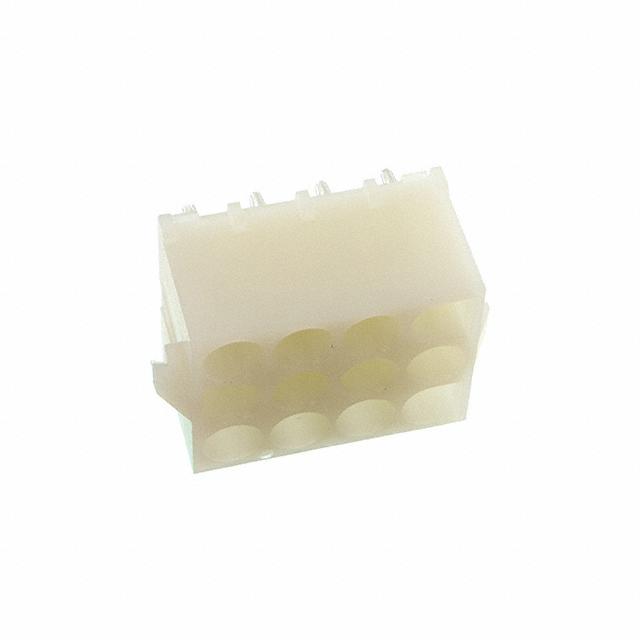

CONN HEADER VERT 12POS 6.35MM
| Part | Connector Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Insulation Material | Number of Positions Loaded | Material Flammability Rating | Contact Finish - Post | Current Rating (Amps) | Style | Features | Insulation Color | Termination | Insulation Height | Insulation Height | Number of Positions | Number of Rows [custom] | Mounting Type | Contact Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Header | Circular | 6.35 mm | 0.25 in | Locking Ramp | Nylon 6/6 Polyamide (PA66) | All | UL94 V-2 | Tin | 13 A | Board to Cable/Wire | Polarizing Key | Natural | Solder | 0.55 in | 13.97 mm | 12 | 3 | Through Hole | Male Pin | 600 VAC | 85 °C | -25 °C | Shrouded - 4 Wall | 6.35 mm | 0.25 in | 4.5 mm | 0.177 in |
