NCP590 Series

Catalog

IC REG LINEAR 2.8V/2.8V 8-DFN

Part	PSRR [Min]	PSRR [Max]	Package / Case	Output Type	Control Features	Output Configuration	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Current - Quiescent (Iq)	Number of Regulators	Supplier Device Package	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Channels per IC	Board Type	Regulator Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Supplied Contents	Current - Output	PSRR	PSRR	Voltage - Output (Min/Fixed)
ON Semiconductor NCP590MNPPR2G	50 dB	40 dB	8-VFDFN Exposed Pad	1.81 mOhm	Enable	Positive	Over Current Over Temperature	85 °C	-40 °C	0.225 V	Surface Mount	2.8 V	2.8 V	125 µA	2	8-DFN (2x2)	250 µA	5.5 V

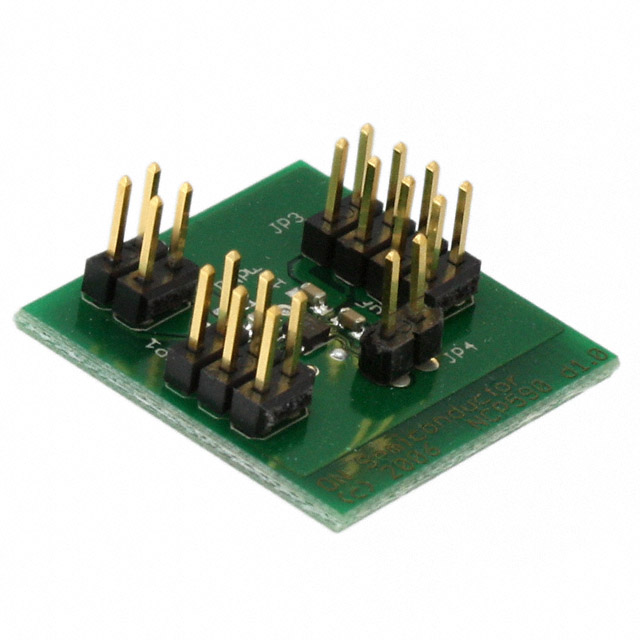

ON Semiconductor NCP590MN5ATAGEVB																			2 - Dual	Fully Populated	Positive Fixed	NCP590MNA	2.1 V	5.5 V	1.2 V 1.5 V	Board(s)	300 mA
ON Semiconductor NCP590MNOAR2G			8-VFDFN Exposed Pad	1.81 mOhm	Enable	Positive	Over Current Over Temperature	85 °C	-40 °C	0.225 V	Surface Mount	1.5 V 2.4 V		125 µA	2	8-DFN (2x2)	250 µA	5.5 V
ON Semiconductor NCP590MNDSR2G			8-VFDFN Exposed Pad	1.81 mOhm	Enable	Positive	Over Current Over Temperature	85 °C	-40 °C	0.225 V	Surface Mount	1.8 V 3 V		125 µA	2	8-DFN (2x2)	250 µA	5.5 V										55 dB	-
ON Semiconductor NCP590MNDPR2G	40 dB	50 dB	8-VFDFN Exposed Pad	1.81 mOhm	Enable	Positive	Over Current Over Temperature	85 °C	-40 °C	0.225 V	Surface Mount	1.8 V		125 µA	2	8-DFN (2x2)	250 µA	5.5 V										55 dB		2.8 V
