A18KH Series

Catalog

PROCESS SEALED SUBMINIATURE ROCKER

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Color - Actuator/Cap	Switch Function	Features	Approval Agency	Termination Style	Circuit	Voltage Rating - DC	Mounting Type	Actuator Type	Actuator Material	Illumination	Bushing Thread	Actuator Length [x]
NKK Switches A18KH-CA	50000 Cycles	50000 Cycles	28 V	0.4 VA	85 °C	-30 ░C	No Marking	Black	Mom-Off-Mom	Process Sealed	CSA UL	PC Pin	SPDT	28 V	Right Angle Through Hole	Concave

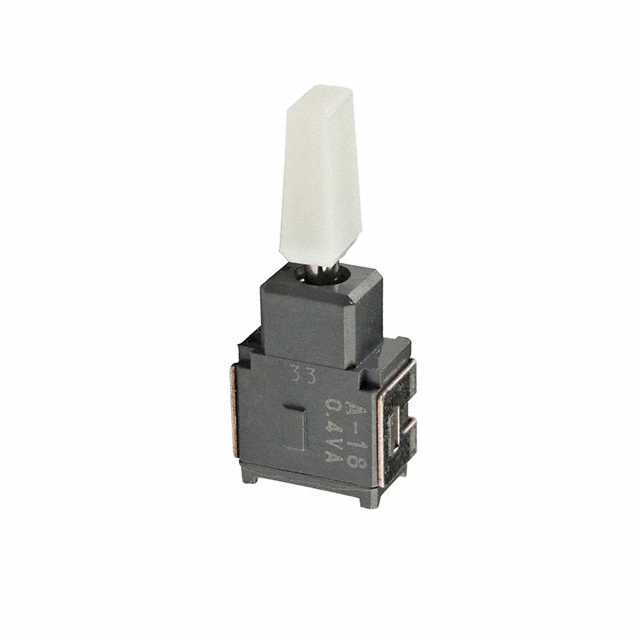

NKK Switches A18KH-AB		50000 Cycles	28 V	0.4 VA	85 °C	-30 ░C			Mom-Off-Mom	White Actuator		PC Pin	SPDT	28 V	Right Angle Through Hole	Snap On Paddle	Glass Filled Nylon Polyamide (PA)	Non-Illuminated	Unthreaded Square	9.4 mm
NKK Switches A18KH-CC	50000 Cycles	50000 Cycles	28 V	0.4 VA	85 °C	-30 ░C	No Marking	Red	Mom-Off-Mom	Process Sealed	CSA UL	PC Pin	SPDT	28 V	Right Angle Through Hole	Concave

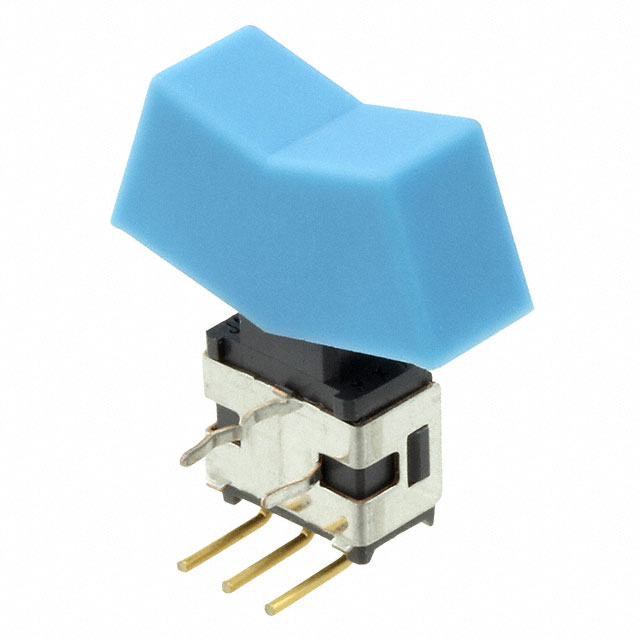

NKK Switches A18KH-CG	50000 Cycles	50000 Cycles	28 V	0.4 VA	85 °C	-30 ░C	No Marking	Blue	Mom-Off-Mom	Process Sealed	CSA UL	PC Pin	SPDT	28 V	Right Angle Through Hole	Concave
