725-144 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 144POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Pitch	Pitch	Color	Number of Rows [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Read Out	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Positions/Bay/Row [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type
EDAC Inc. 725-144-541-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	Copper Alloy	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	Dual	Through Hole	30 Áin	0.76 Ám	Female	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	Cantilever

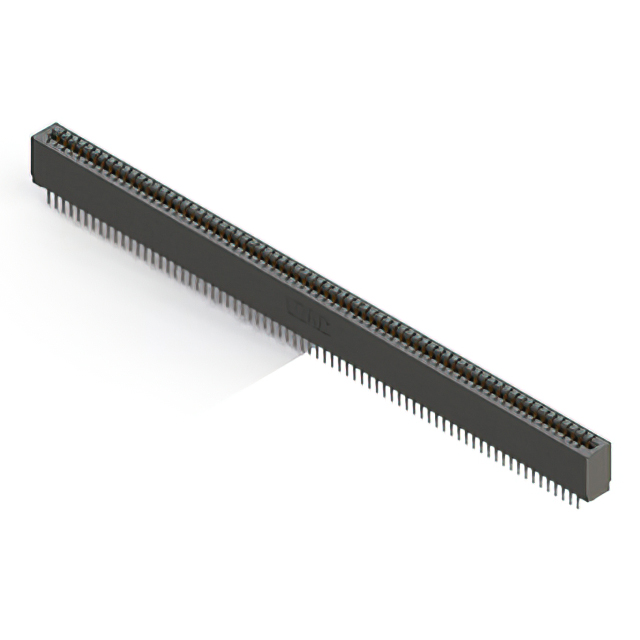

EDAC Inc. 725-144-525-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	Copper Alloy	-40 C	105 ░C	Gold	Press-Fit	Dual	Through Hole	30 Áin	0.76 Ám	Female	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	Cantilever
EDAC Inc. 725-144-545-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	Copper Alloy	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	Dual	Through Hole	30 Áin	0.76 Ám	Female	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	Cantilever
EDAC Inc. 725-144-540-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	Copper Alloy	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	Dual	Through Hole	30 Áin	0.76 Ám	Female	72	0.07 in 1.78 mm	0.054 in 1.37 mm	144	Cantilever
