725-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Number of Positions	Number of Positions/Bay/Row	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination	Card Type	Pitch	Pitch	Color	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows	Number of Rows
EDAC Inc. 725-066-522-201	Polyester Thermoplastic	2	Cantilever	66	33	Copper Alloy	-40 C	105 ░C	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	Dual	Female	30 Áin	0.76 Ám	Gold
EDAC Inc. 725-066-520-101	Polyester Thermoplastic		Cantilever	66	66	Copper Alloy	-40 C	105 ░C	Through Hole		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Single Edge	0.1 "	2.54 mm	Black	Single	Female	30 Áin	0.76 Ám	Gold	1	1
EDAC Inc. 725-066-522-101	Polyester Thermoplastic		Cantilever	66	66	Copper Alloy	-40 C	105 ░C	Through Hole		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Single Edge	0.1 "	2.54 mm	Black	Single	Female	30 Áin	0.76 Ám	Gold	1	1
EDAC Inc. 725-066-540-101	Polyester Thermoplastic		Cantilever	66	66	Copper Alloy	-40 C	105 ░C	Through Hole		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Non Specified - Single Edge	0.1 "	2.54 mm	Black	Single	Female	30 Áin	0.76 Ám	Gold	1	1

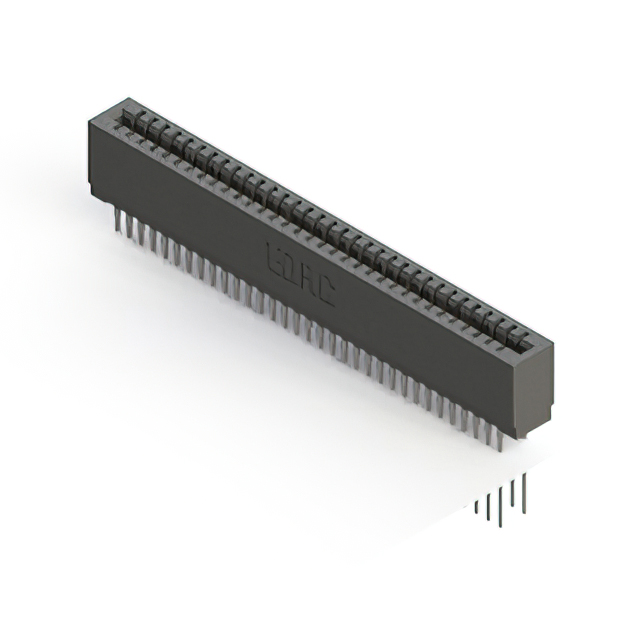

EDAC Inc. 725-066-541-201	Polyester Thermoplastic	2	Cantilever	66	33	Copper Alloy	-40 C	105 ░C	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	Dual	Female	30 Áin	0.76 Ám	Gold

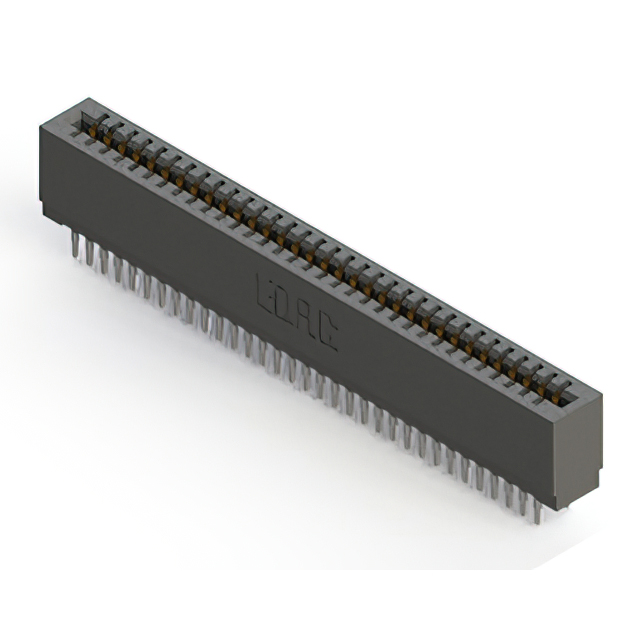

EDAC Inc. 725-066-525-201	Polyester Thermoplastic	2	Cantilever	66	33	Copper Alloy	-40 C	105 ░C	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	Dual	Female	30 Áin	0.76 Ám	Gold
EDAC Inc. 725-066-525-101	Polyester Thermoplastic		Cantilever	66	66	Copper Alloy	-40 C	105 ░C	Through Hole		0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Single Edge	0.1 "	2.54 mm	Black	Single	Female	30 Áin	0.76 Ám	Gold	1	1
EDAC Inc. 725-066-560-201	Polyester Thermoplastic	2	Cantilever Make Before Break	66	33	Copper Alloy	-40 C	105 ░C	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	Dual	Female	30 Áin	0.76 Ám	Gold
EDAC Inc. 725-066-540-201	Polyester Thermoplastic	2	Cantilever	66	33	Copper Alloy	-40 C	105 ░C	Through Hole	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	Dual	Female	30 Áin	0.76 Ám	Gold
