LM46000-Q1 Series

AEC-Q100 Qualified 3.5 to 60V 0.5A Synchronous Step-Down Voltage Converter

Catalog

AEC-Q100 Qualified 3.5 to 60V 0.5A Synchronous Step-Down Voltage Converter

Part	Qualification	Voltage - Output (Max)	Supplier Device Package	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Package / Case	Current - Output	Frequency - Switching [Max]	Frequency - Switching [Min]	Topology	Function	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Output (Min/Fixed)	Mounting Type	Grade	Output Type	Outputs and Type	Outputs and Type	Frequency - Switching	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Board Type	Utilized IC / Part	Main Purpose	Supplied Contents
Texas Instruments LM46000AQPWPTQ1	AEC-Q100	28 V	16-HTSSOP	1	3.5 V	60 V	16-PowerTSSOP	0.173 in 4.4 mm Width	500 mA	2.2 MHz	200 kHz	Buck	Step-Down	-40 °C	125 ¯C	Positive	1 V	Surface Mount	Automotive	Adjustable
Texas Instruments LM46000PWPR		28 V	16-HTSSOP	1	3.5 V	60 V	16-PowerTSSOP	0.173 in 4.4 mm Width	500 mA	2.2 MHz	200 kHz	Buck	Step-Down	-40 °C	125 ¯C	Positive	1 V	Surface Mount		Adjustable

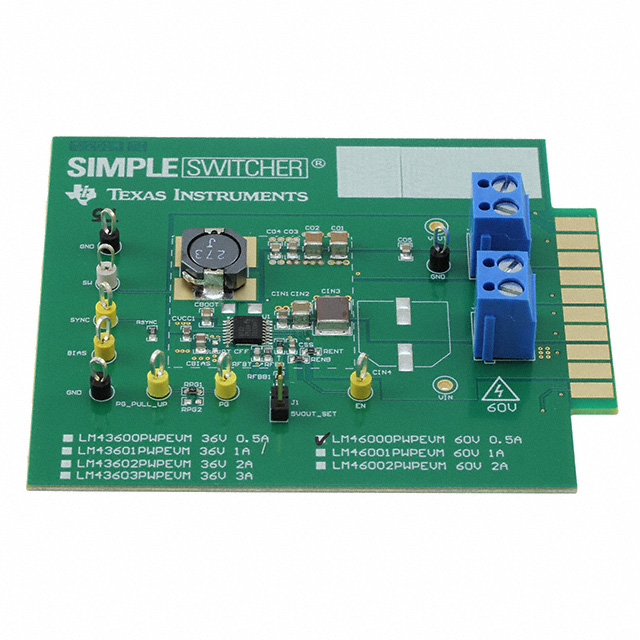

Texas Instruments LM46000PWPEVM									500 mA												Non-Isolated	1	500 kHz	Buck	60 V	3.5 V	3.3 V	Fully Populated	LM46000	DC/DC Step Down	Board(s)

Catalog

AEC-Q100 Qualified 3.5 to 60V 0.5A Synchronous Step-Down Voltage Converter

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Operating Junction Temperature24-µA Quiescent Current in RegulationHigh Efficiency at Light Load (DCM and PFM)Tested to EN55022/CISPR 22 EMI StandardsIntegrated Synchronous RectificationAdjustable Frequency Range: 200 kHz to 2.2 MHz (500 kHz default)Frequency Synchronization to External ClockInternal CompensationStable With Almost Any Combination of Ceramic, Polymer, Tantalum, and Aluminum CapacitorsPower-Good FlagSoft Start into Pre-Biased LoadInternal Soft Start: 4.1 msExtendable Soft-Start Time by External CapacitorOutput Voltage Tracking CapabilityPrecision Enable to Program System UVLOOutput Short-Circuit Protection With Hiccup ModeOvertemperature Thermal Shutdown ProtectionCreate a Custom Design Using the LM46000-Q1 With theWEBENCH®Power DesignerQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C Operating Junction Temperature24-µA Quiescent Current in RegulationHigh Efficiency at Light Load (DCM and PFM)Tested to EN55022/CISPR 22 EMI StandardsIntegrated Synchronous RectificationAdjustable Frequency Range: 200 kHz to 2.2 MHz (500 kHz default)Frequency Synchronization to External ClockInternal CompensationStable With Almost Any Combination of Ceramic, Polymer, Tantalum, and Aluminum CapacitorsPower-Good FlagSoft Start into Pre-Biased LoadInternal Soft Start: 4.1 msExtendable Soft-Start Time by External CapacitorOutput Voltage Tracking CapabilityPrecision Enable to Program System UVLOOutput Short-Circuit Protection With Hiccup ModeOvertemperature Thermal Shutdown ProtectionCreate a Custom Design Using the LM46000-Q1 With theWEBENCH®Power Designer

Description

The LM46000-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 500 mA of load current from an input voltage range of 3.5 V to 60 V. The LM46000-Q1 provides exceptional efficiency, output accuracy and dropout voltage in a very small solution size. An extended family is available in 1-A and 2-A load current options in pin-to-pin compatible packages. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-to-use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCCundervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM46000-Q1 device is available in the 16-pin HTSSOP (PWP) package (6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch. The device is pin-to-pin compatible with the LM4360x and LM4600x families. The LM46000A-Q1 version is optimized for PFM operation and recommended for new designs. The LM46000-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 500 mA of load current from an input voltage range of 3.5 V to 60 V. The LM46000-Q1 provides exceptional efficiency, output accuracy and dropout voltage in a very small solution size. An extended family is available in 1-A and 2-A load current options in pin-to-pin compatible packages. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft start, extendable soft start, and tracking provide a flexible and easy-to-use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCCundervoltage lockout, cycle-by-cycle current limit, and output short-circuit protection. The LM46000-Q1 device is available in the 16-pin HTSSOP (PWP) package (6.6 mm × 5.1 mm × 1.2 mm) with 0.65-mm lead pitch. The device is pin-to-pin compatible with the LM4360x and LM4600x families. The LM46000A-Q1 version is optimized for PFM operation and recommended for new designs.
