171507 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

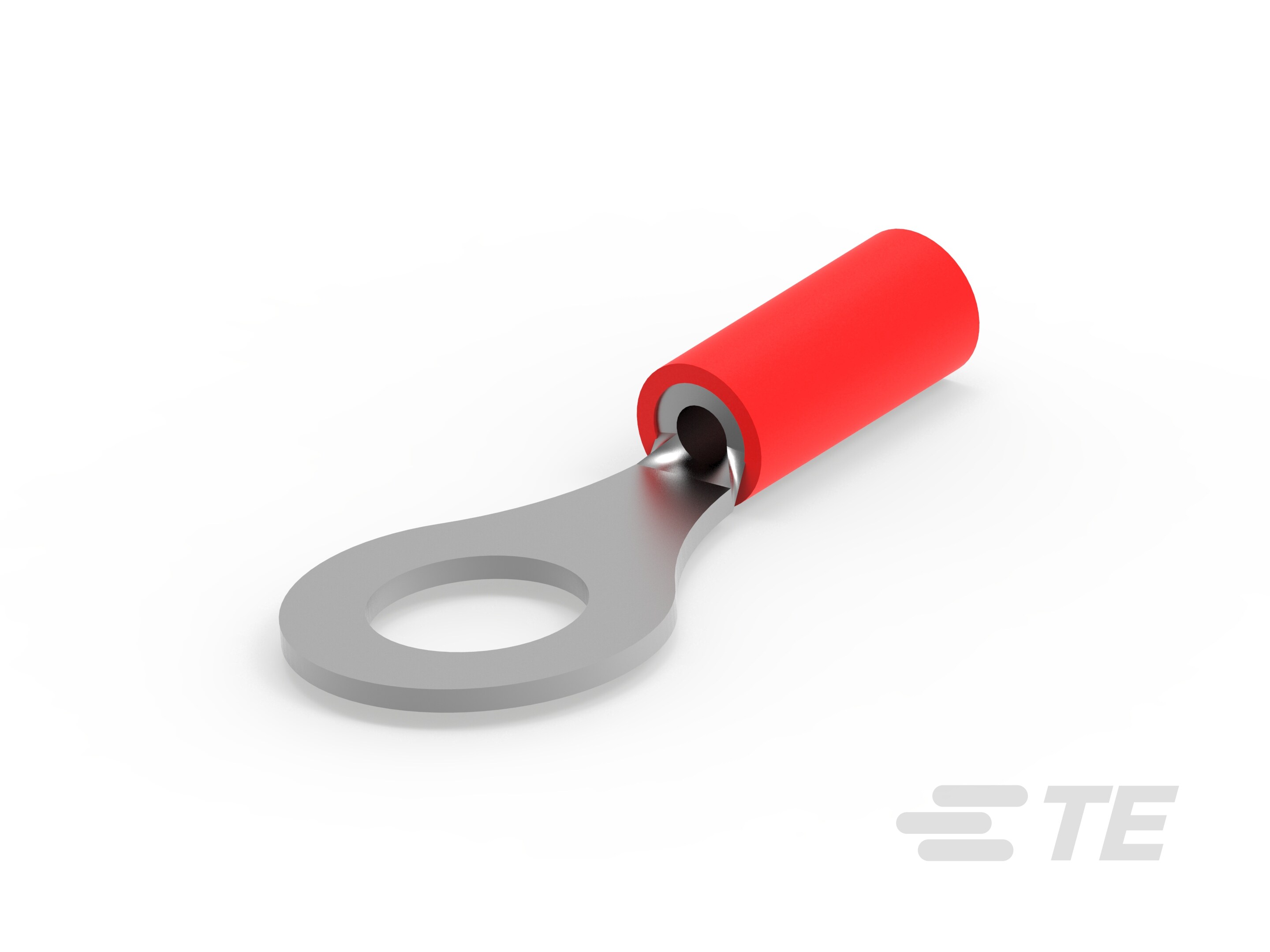

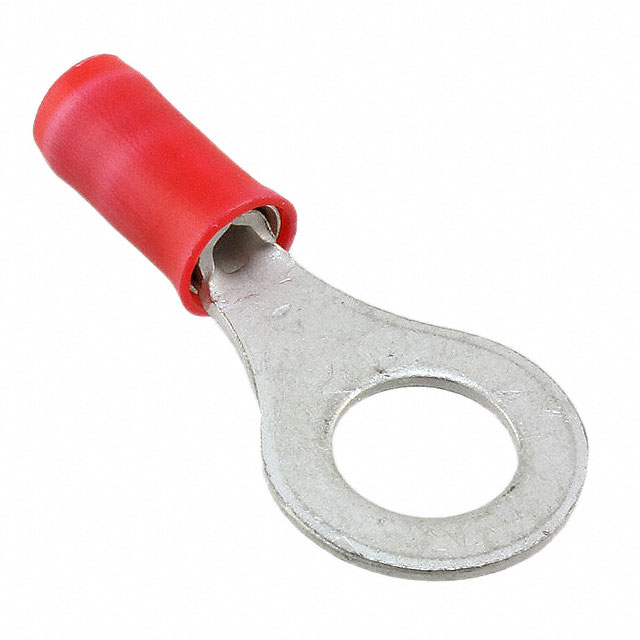

CONN RING CIRC 18-22AWG #1/4
| Part | Mounting Type | Contact Material | Color | Length - Overall [x] | Length - Overall [x] | Thickness | Thickness | Insulation | Termination | Contact Finish | Features | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Type | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Copper | Red | 27.6 mm | 1.087 " | 0.031 in | 0.79 mm | Insulated | Crimp | Tin | Serrated Termination | 11.91 mm | 0.469 in | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 0.25 Stud | 22 AWG | 17.5 AWG | Circular | |
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Copper | Red | 27.6 mm | 1.087 " | 0.031 in | 0.79 mm | Insulated | Crimp | Tin | Serrated Termination | 11.91 mm | 0.469 in | 2.67 mm | 0.14 in | 0.105 in | 0.25 Stud | 22 AWG | 17.5 AWG | Circular | 3.56 mm |
