VM.VD Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

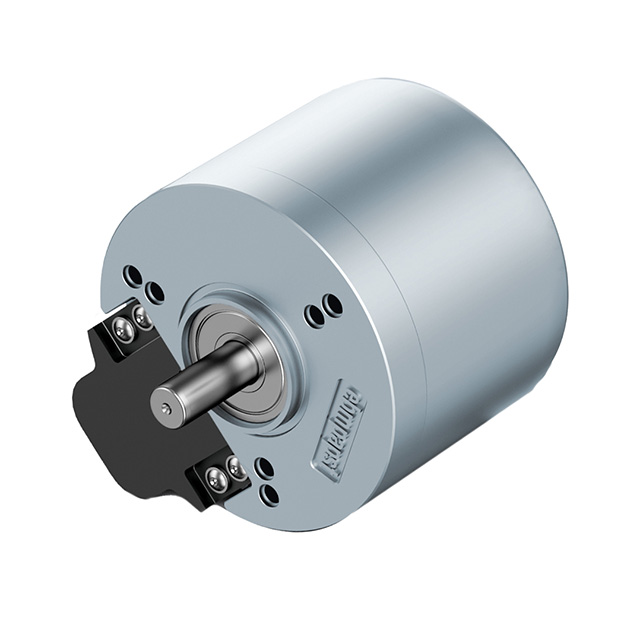

STANDARD MOTOR 4500 RPM 24V
| Part | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | RPM | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Type | Function | Motor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 235 mNm | 33.28 oz-in | 0.315 in | 8 mm | 1.929 in | Round | 49 mm | 4500 RPM | 24 VDC | 40 °C | 0 °C | 20 mm | 0.787 in | 1.969 in | 50 mm | DC Motor | Standard | Brushless (BLDC) |
