M80-878 Series
Manufacturer: Harwin Inc.
Beta
⌘K
HEADER CONNECTOR,PCB MNT,RECEPT,4 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Features | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Shape | Contact Type | Voltage Rating | Style | Contact Finish - Mating | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Connector Type | Insulation Material | Pitch - Mating | Pitch - Mating | Termination | Contact Material | Number of Rows | Shrouding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 118.1 µin | 3 µm | Strain Relief Clips | 29.5 µin | 0.75 µm | 2.2 A | 0.156 in | 3.96 mm | 0.118 in | 3 mm | Right Angle Through Hole | Circular | Male Pin | 120 VDC | Board to Board Cable | Gold | All | Black | UL94 V-0 | Latch Holder | -55 C | 125 °C | Tin-Lead | Header | Polybutylene Terephthalate (PBT) Glass Filled | 0.079 " | 2 mm | Solder | Phosphor Bronze | 1 | Shrouded - 4 Wall | 4 |

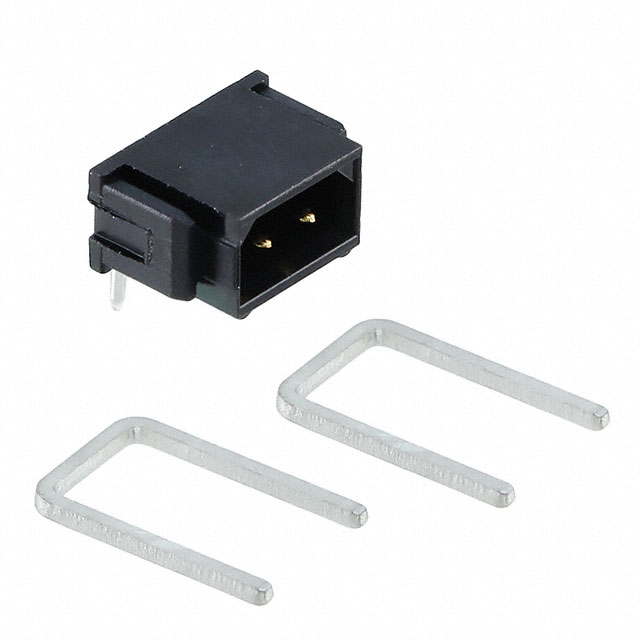

 Harwin Inc. | 118.1 µin | 3 µm | Strain Relief Clips | 29.5 µin | 0.75 µm | 2.2 A | 0.156 in | 3.96 mm | 0.118 in | 3 mm | Right Angle Through Hole | Circular | Male Pin | 120 VDC | Board to Board Cable | Gold | All | Black | UL94 V-0 | Latch Holder | -55 C | 125 °C | Tin-Lead | Header | Polybutylene Terephthalate (PBT) Glass Filled | 0.079 " | 2 mm | Solder | Phosphor Bronze | 1 | Shrouded - 4 Wall | 2 |
Harwin Inc. | 118.1 µin | 3 µm | Strain Relief Clips | 29.5 µin | 0.75 µm | 2.2 A | 0.156 in | 3.96 mm | 0.118 in | 3 mm | Right Angle Through Hole | Circular | Male Pin | 120 VDC | Board to Board Cable | Gold | All | Black | UL94 V-0 | Latch Holder | -55 C | 125 °C | Tin-Lead | Header | Polybutylene Terephthalate (PBT) Glass Filled | 0.079 " | 2 mm | Solder | Phosphor Bronze | 1 | Shrouded - 4 Wall | 22 |
Harwin Inc. | 118.1 µin | 3 µm | Strain Relief Clips | 29.5 µin | 0.75 µm | 2.2 A | 0.156 in | 3.96 mm | 0.118 in | 3 mm | Right Angle Through Hole | Circular | Male Pin | 120 VDC | Board to Board Cable | Gold | All | Black | UL94 V-0 | Latch Holder | -55 C | 125 °C | Tin-Lead | Header | Polybutylene Terephthalate (PBT) Glass Filled | 0.079 " | 2 mm | Solder | Phosphor Bronze | 1 | Shrouded - 4 Wall | |

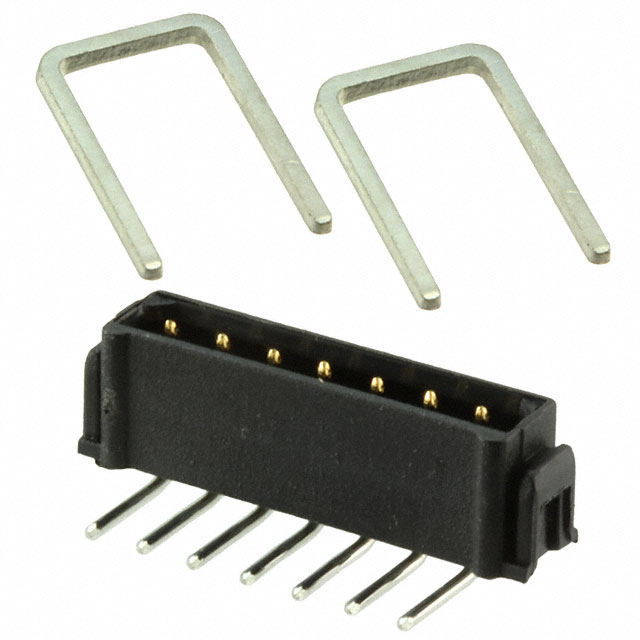

 Harwin Inc. | 118.1 µin | 3 µm | Strain Relief Clips | 29.5 µin | 0.75 µm | 2.2 A | 0.156 in | 3.96 mm | 0.118 in | 3 mm | Right Angle Through Hole | Circular | Male Pin | 120 VDC | Board to Board Cable | Gold | All | Black | UL94 V-0 | Latch Holder | -55 C | 125 °C | Tin-Lead | Header | Polybutylene Terephthalate (PBT) Glass Filled | 0.079 " | 2 mm | Solder | Phosphor Bronze | 1 | Shrouded - 4 Wall | 7 |
