TPS2556-Q1 Series

Automotive 0.5-5A adjustable ILIMIT, 2.5-6.5V, 22mΩ USB power switch, active-low

Catalog

Automotive 0.5-5A adjustable ILIMIT, 2.5-6.5V, 22mΩ USB power switch, active-low

Part	Rds On (Typ)	Current - Output (Max) [Max]	Number of Outputs	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Fault Protection	Features	Output Type	Supplier Device Package	Ratio - Input:Output [custom]	Switch Type	Input Type	Interface	Mounting Type	Package / Case	Grade	Qualification	Contents	Supplied Contents	Type	Function
Texas Instruments TPS2556DRBR	22 mOhm	500 mA	1	High Side	6.5 V	2.5 V	-40 °C	125 ¯C	Current Limiting (Adjustable) Over Temperature UVLO	Slew Rate Controlled Status Flag	N-Channel	8-SON (3x3)	1:1	General Purpose	Non-Inverting	On/Off	Surface Mount	8-VDFN Exposed Pad
Texas Instruments TPS2556QDRBRQ1	22 mOhm	5 A	1	High Side	6.5 V	2.5 V	-40 °C	125 ¯C	Current Limiting (Adjustable) Over Temperature UVLO	Slew Rate Controlled Status Flag	N-Channel	8-SON (3x3)	1:1	General Purpose	Non-Inverting	On/Off	Surface Mount	8-VDFN Exposed Pad	Automotive	AEC-Q100
Texas Instruments TPS2556QDRBTQ1	22 mOhm	5 A	1	High Side	6.5 V	2.5 V	-40 °C	125 ¯C	Current Limiting (Adjustable) Over Temperature UVLO	Slew Rate Controlled Status Flag	N-Channel	8-SON (3x3)	1:1	General Purpose	Non-Inverting	On/Off	Surface Mount	8-VDFN Exposed Pad	Automotive	AEC-Q100

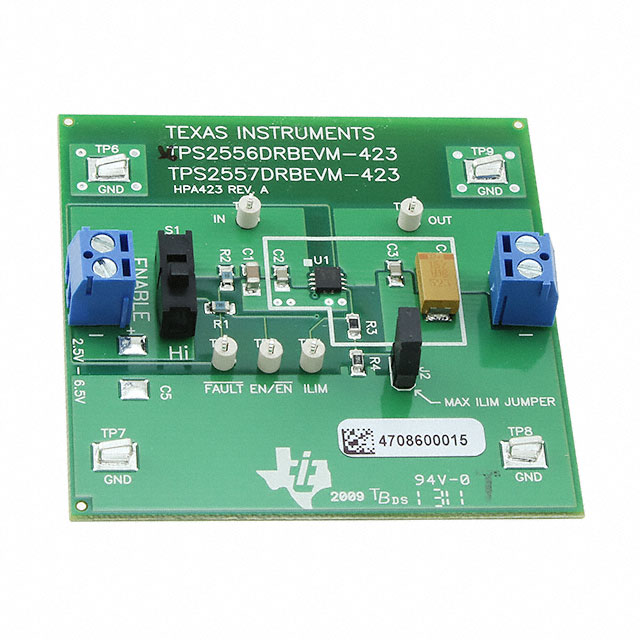

Texas Instruments TPS2556DRBEVM-423																					Board(s)	Board(s)	Power Management	Power Distribution Switch (Load Switch)

Catalog

Automotive 0.5-5A adjustable ILIMIT, 2.5-6.5V, 22mΩ USB power switch, active-low

Key Features

• AEC-Q100 QualifiedDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C5Functional Safety-CapableDocumentation available to aid functional safety system designMeets USB current-limiting requirementsAdjustable current limit, 500 mA – 5 A (typ.)±6.5% current-limit accuracy at 4.5 AFast short-circuit response – 3.5 µs (typ.)22-mΩ high-side MOSFETOperating range: 2.5 V to 6.5 V2-µA maximum standby supply currentBuilt-in soft-start15-kV and 8-kV system-level ESD capableSafety-related certifications:UL Recognized for UL 2367CB Certification for IEC 60950CB Certification for IEC 62368AEC-Q100 QualifiedDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C5Functional Safety-CapableDocumentation available to aid functional safety system designMeets USB current-limiting requirementsAdjustable current limit, 500 mA – 5 A (typ.)±6.5% current-limit accuracy at 4.5 AFast short-circuit response – 3.5 µs (typ.)22-mΩ high-side MOSFETOperating range: 2.5 V to 6.5 V2-µA maximum standby supply currentBuilt-in soft-start15-kV and 8-kV system-level ESD capableSafety-related certifications:UL Recognized for UL 2367CB Certification for IEC 60950CB Certification for IEC 62368

Description

The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets. The TPS2556-Q1 and TPS2557-Q1 power-distribution switches are specialized for automotive applications which require precision current limiting or capacity to handle heavy capacitive loads and short circuits. These devices offer a programmable current-limit threshold between 500 mA and 5 A (typical) via an external resistor. Control of the power-switch rise and fall times minimizes current surges during turnon or turnoff. TPS2556-Q1 and TPS2557-Q1 devices limit the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTlogic output asserts low during overcurrent and overtemperature conditions. Use with the TPS2511-Q1 or TPS2513A-Q1 for a low-loss, automotive-qualified, USB charging-port solution capable of charging all of today’s popular phones and tablets.
