83350E Series
Manufacturer: Belden Inc.
Beta
⌘K

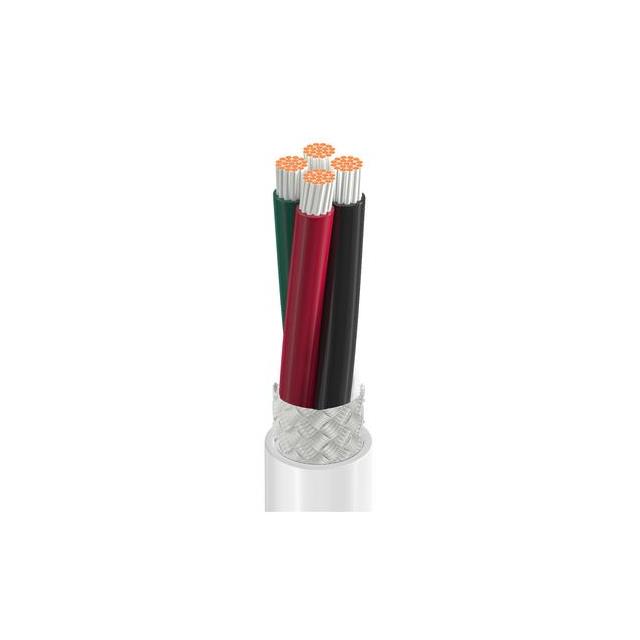

CABLE 4COND 20AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Qualification | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Jacket Color | Voltage | Number of Conductors | Conductor Material | Cable Type | Length | Length | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Silver Coated | 85 % | 19 | 32 AWG | Tetrafluoroethylene (TFE) | MIL-W-16878/4 Type E | 0.183 in | 4.65 mm | Braid | 20 AWG | White | 600 V | 4 | Copper Silver Coated | Multi-Conductor | 304.8 m | 1000 ft | Tetrafluoroethylene (TFE) | 0.279 mm | 0.011 " | -65 ░C | 200 °C |
