OSTTS12 Series

Catalog

TERM BLOCK PLUG 12POS 7.62MM

Part	Housing Material	Torque - Screw	Torque - Screw	Material Flammability Rating	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Pitch	Pitch	Number of Positions	Positions Per Level	Number of Levels	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - UL	Termination Style	Color	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
On Shore Technology Inc. OSTTS12015D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.3 in	7.62 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw
On Shore Technology Inc. OSTTS12315D	Brass	1.7 Lb-In	0.2 Nm	UL94 V-0	Brass	7 mm	6 mm	0.15 in	3.81 mm	12	12	1	Plug Female Sockets	16 AWG	28 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green	1.5 mm²
On Shore Technology Inc. OSTTS12515C	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.2 in	5.08 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green		0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS12715D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.197 in	5 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green		0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS12015B	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.3 in	7.62 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw
On Shore Technology Inc. OSTTS12715B	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.197 in	5 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green				0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS12515D	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.2 in	5.08 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green				0.34 mm²	2.5 mm²

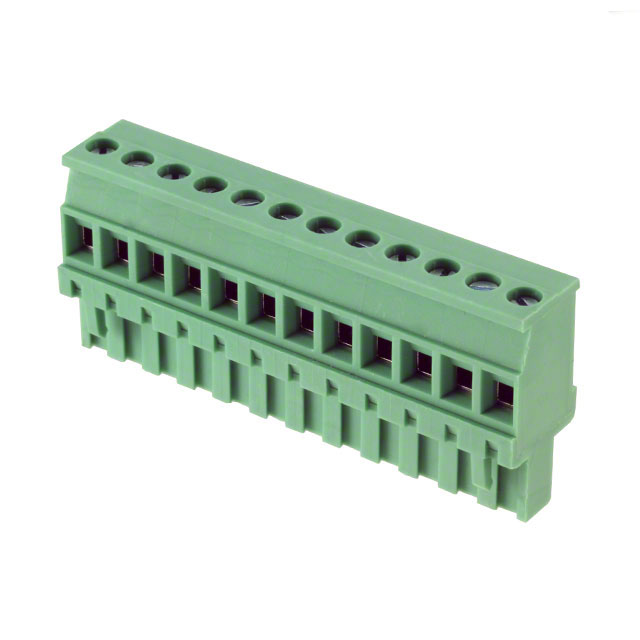

On Shore Technology Inc. OSTTS12515A	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.2 in	5.08 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green		0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS12515B	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.2 in	5.08 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green				0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS12715A	Brass	3.5 Lb-In	0.4 Nm	UL94 V-0	Brass	7 mm	6 mm	0.197 in	5 mm	12	12	1	Plug Female Sockets	12 AWG	24 AWG	-30 ░C	105 ░C	Free Hanging (In-Line)	300 V	Screw	Green		0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
