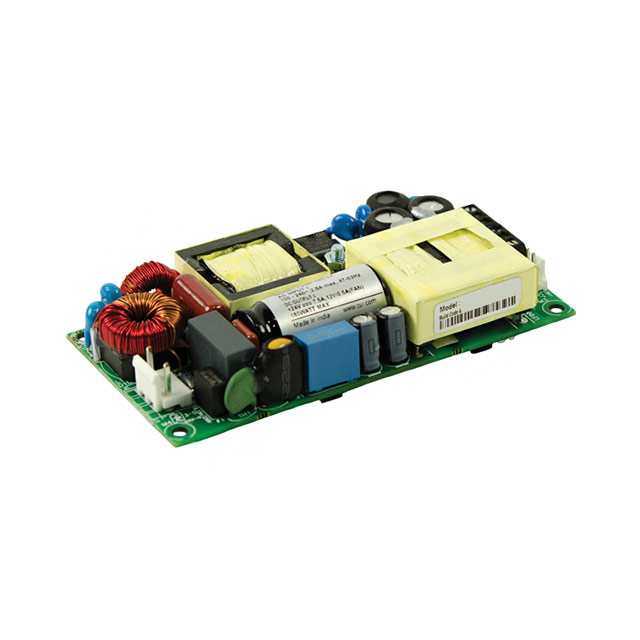

VOF-180 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 120W
| Part | Features | Applications | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Voltage - Isolation | Standard Number | Approval Agency | Type | Efficiency | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Adjustable Output Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 5 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 24 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 90 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 4 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 30 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 90 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 2.07 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 92 % | 1 | |
CUI Inc. | Adjustable Output Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 2.5 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 48 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 92 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 8 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 15 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 88 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 2.5 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 48 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 92 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 4 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 30 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 90 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 10 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 12 V | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 88 % | 1 |
CUI Inc. | Adjustable Output PFC Standby Output Universal Input | ITE (Commercial) | Chassis Mount | 80 VAC | 264 VAC | 120 W 180 W | 2.07 A | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 3000 V | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | CB Scheme EN FCC IEC SIQ TUV UL | Open Frame | 92 % | 1 |
