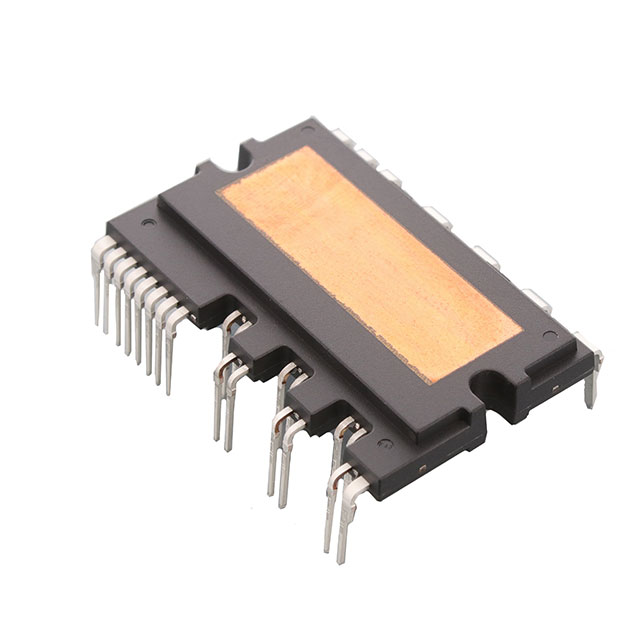

NFVA33065L32 Series
Intelligent Power Module (IPM), AEC-Q & AQG324, Automotive, Inverter, 650V,30A
Manufacturer: ON Semiconductor
Catalog
Intelligent Power Module (IPM), AEC-Q & AQG324, Automotive, Inverter, 650V,30A
Key Features
• 650 V/30 A 3−Phase IGBT Inverter with Integral Gate Driversand Protections
• WW 1st Automotive qualified grade HV module (AEC−Q100, 101 & AQG(LV)324)
• 175°C guaranteed Short−Circuit Rated FS Trench IGBTs with stableEMI performance
• Outstanding Thermal Resistance using AL2O3 DBC Substrate
• Automotive SPM in 27 pin DIP package
• Separated Open−Emitter Pins from Low−Side IGBTs forThree−Phase Current Sensing
• Single−Grounded Power Supply
• LVIC Temperature−Sensing Built−In for Temperature Monitoring
• Isolation Rating: 2500 Vrms/1 min.
• Pb−Free and RoHS compliant
Description
AI
NFVA33065L32 is an advanced Automotive Intelligent Power Module (IPM), providing a fully−featured, high−performance inverter output stage for hybrid and electric vehicles. These modules integrate optimized gate drive of the built−in IGBTs to minimize EMI and losses, while also providing multiple on−module protection features including under−voltage lockouts, over−current shutdown, thermal monitoring of drive IC, and fault reporting. The built−in, high−speed HVIC requires only a single supply voltage and translates the incoming logic−level gate inputs to the high−voltage, high−current drive signals required to properly drive the module’s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
