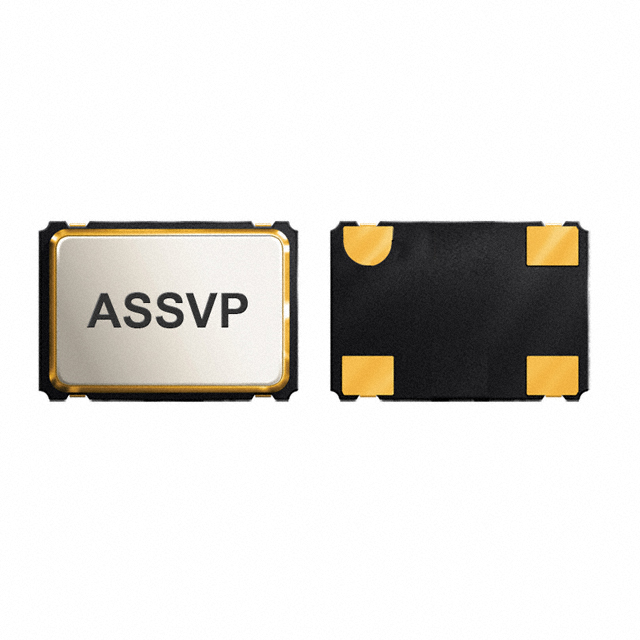

ASSVP Series
Manufacturer: Abracon LLC
Beta
⌘K
XTAL OSC PROG XO CMOS CS 3.3V
| Part | Output | Programmable Type | Function | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Spread Spectrum Bandwidth | Voltage - Supply | Frequency Stability (Total) | Mounting Type | Supplier Device Package | Base Resonator [custom] | Current - Supply (Max) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Available Frequency Range [Max] | Available Frequency Range [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | 0.25 % | 3.3 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | -4 % | 3.3 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | -4 % | 2.5 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 30 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | -1 % | 3.3 V | 50 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | -3 % | 3.3 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | 0.5 % | 2.5 V | 50 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 30 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | -1.5 % | 3.3 V | 50 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | 1.5 % | 3.3 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | 2 % | 3.3 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 40 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
Abracon LLC | CMOS | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Standby (Power Down) | 4-SMD No Lead | XO (Standard) | 85 °C | -40 C | 0.25 % | 2.5 V | 25 ppm | Surface Mount | 4-SMD (7x5) | Crystal | 30 mA | 0.055 in | 1.4 mm | 160 MHz | 10 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " |
