845-086 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

...

Part	Card Type	Material - Insulation	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Gender	Mounting Type	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Color	Termination Rows [custom]	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Features	Flange Feature
EDAC Inc. 845-086-500-804	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Solder Eyelet(s)	0.156 "	3.96 mm	Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold
EDAC Inc. 845-086-555-808	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Board Edge Straddle Mount	Solder			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold	Card Extender	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-086-555-208	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Board Edge Straddle Mount	Solder			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold	Card Extender	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 845-086-555-802	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Board Edge Straddle Mount	Solder	0.128 "	3.25 mm	Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold	Card Extender
EDAC Inc. 845-086-500-507	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Solder Eyelet(s)			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-086-540-208	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Wire Wrap			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold		4-40 Flush Mount Threaded Insert Top Opening

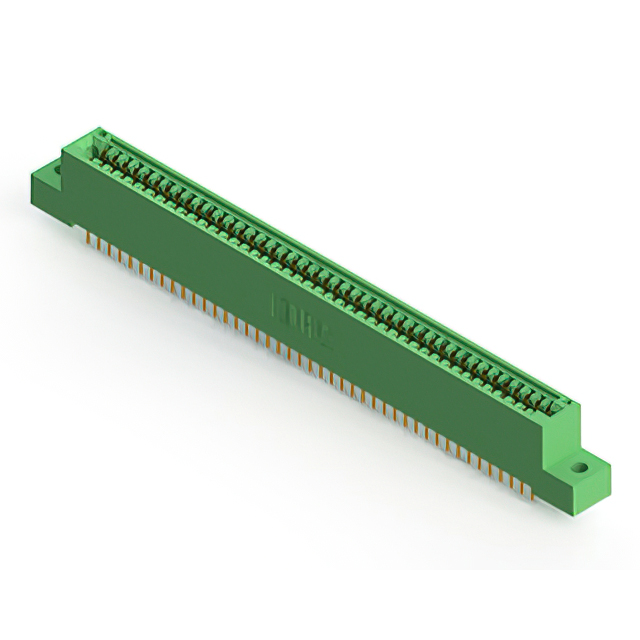

EDAC Inc. 845-086-525-202	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Solder	0.128 "	3.25 mm	Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold
EDAC Inc. 845-086-524-508	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Solder			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold		4-40 Threaded Insert Top Mount Opening

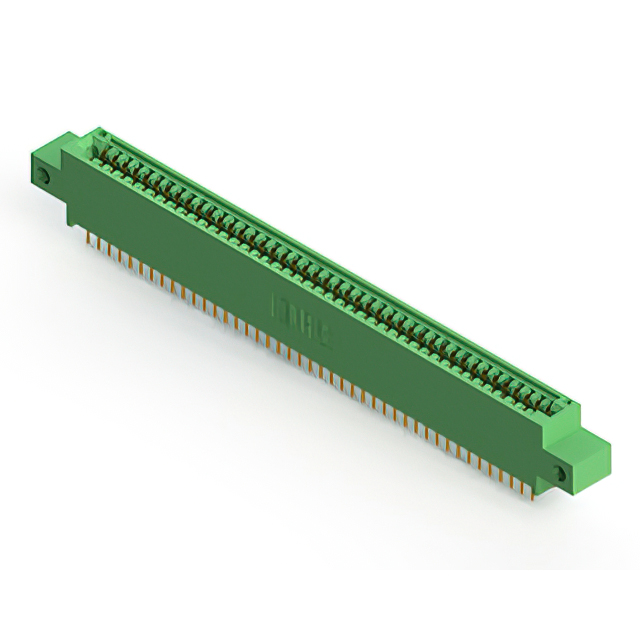

EDAC Inc. 845-086-525-812	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Through Hole	Solder	0.128 "	3.25 mm	Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold		Side Mount Opening Unthreaded
EDAC Inc. 845-086-556-808	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Copper Alloy	0.25 Ám	10 Áin	Cantilever	Female	Board Edge Straddle Mount	Solder			Dual	Green	2	86	0.07 in 1.78 mm	0.054 in 1.37 mm	2	43	125 °C	-40 C	Gold	Card Extender	4-40 Threaded Insert Top Mount Opening
