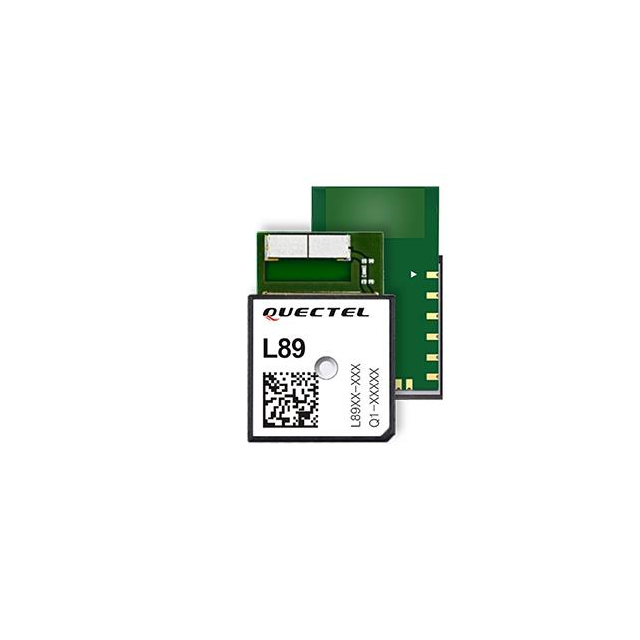

L89 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MODULE NAVIGATION SMD
| Part | Data Rate | Frequency | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Protocol | Sensitivity | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Antenna Type | RF Family/Standard | Serial Interfaces | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | 921.6 kbps | 1.176 GHz 1.561 GHz 1.575 GHz 1.602 GHz | 16-SMD Module | 3.1 V | 4.3 V | BeiDou Galileo GLONASS GNSS GPS | -163 dBm | 85 °C | -40 C | Surface Mount | Antenna Not Included | Navigation | I2C UART | |
Quectel | 921.6 kbps | 1.176 GHz 1.561 GHz 1.575 GHz 1.602 GHz | 16-SMD Module | 3.1 V | 4.3 V | BeiDou Galileo GLONASS GNSS GPS | -163 dBm | 85 °C | -40 C | Surface Mount | Antenna Not Included | Navigation | I2C UART | AG3335MNV/B |
