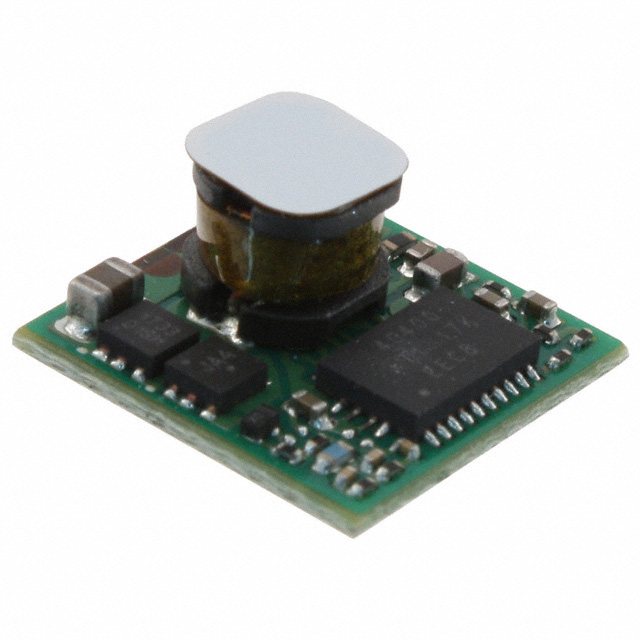

PVX003 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.6-5.5V 16.5W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Type | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Control Features | Number of Outputs | Features | Power (Watts) | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Efficiency | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 85 °C | -40 C | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module | 17-SMD Module | 12.2 mm | 6.35 mm | 6.3 mm | 12.2 mm | 0.48 in | 0.48 " | 14.4 V | 3 A | Active Low Enable | 1 | OCP OTP Remote On/Off UVLO | 16.5 W | 0.6 V | 5.5 V | 94 % | 3 V |
OmniOn Power™ | 85 °C | -40 C | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module | Module | 12.2 mm | 6.35 mm | 6.3 mm | 12.2 mm | 0.48 in | 0.48 " | 14.4 V | 3 A | Active High Enable | 1 | OCP OTP Remote On/Off UVLO | 17 W | 0.6 V | 5.5 V | 93.9 % | 3 V |
OmniOn Power™ | 85 °C | -40 C | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module | 17-SMD Module | 12.2 mm | 6.35 mm | 6.3 mm | 12.2 mm | 0.48 in | 0.48 " | 14.4 V | 3 A | Active Low Enable | 1 | OCP OTP Remote On/Off UVLO | 16.5 W | 0.6 V | 5.5 V | 94 % | 3 V |
OmniOn Power™ | 85 °C | -40 C | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module | Module | 12.2 mm | 6.35 mm | 6.3 mm | 12.2 mm | 0.48 in | 0.48 " | 14.4 V | 3 A | Active High Enable | 1 | OCP OTP Remote On/Off UVLO | 17 W | 0.6 V | 5.5 V | 93.9 % | 3 V |
