ET125A Series

Catalog

SWITCH TOGGLE SPST 25A 125V

Part	Electrical Life	Circuit	Termination Style	Bushing Thread	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Voltage Rating - AC	Switch Function	Mounting Type	Current Rating (Amps)	Actuator Length [x]

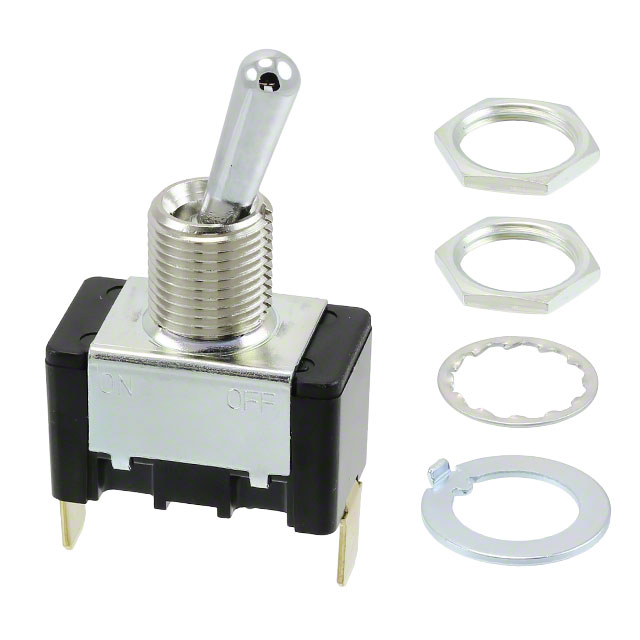

Nidec Components Corporation ET125A-Z	20000 Steps	SPST	Quick Connect - 0.250" (6.3mm)	M12 x 1	Standard Round	12.5 mm	Non-Illuminated	125 V	On-Off	Panel Mount	25 A	17 mm
Nidec Components Corporation ET125A12-Z	20000 Steps	SPST	Solder Lug	M12 x 1	Standard Round	12.5 mm	Non-Illuminated	125 V	On-Off	Panel Mount	25 A	17 mm

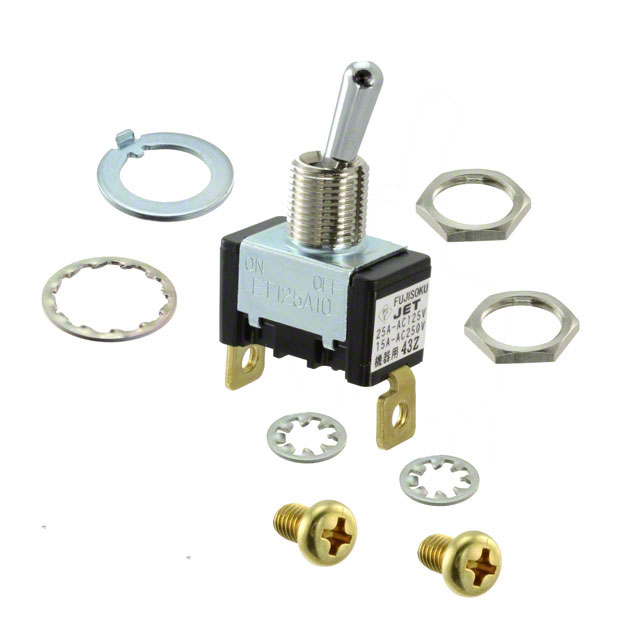

Nidec Components Corporation ET125A10-Z	20000 Steps	SPST	Screw Terminal	M12 x 1	Standard Round	12.5 mm	Non-Illuminated	125 V	On-Off	Panel Mount	25 A	17 mm
