SD040 Series

Catalog

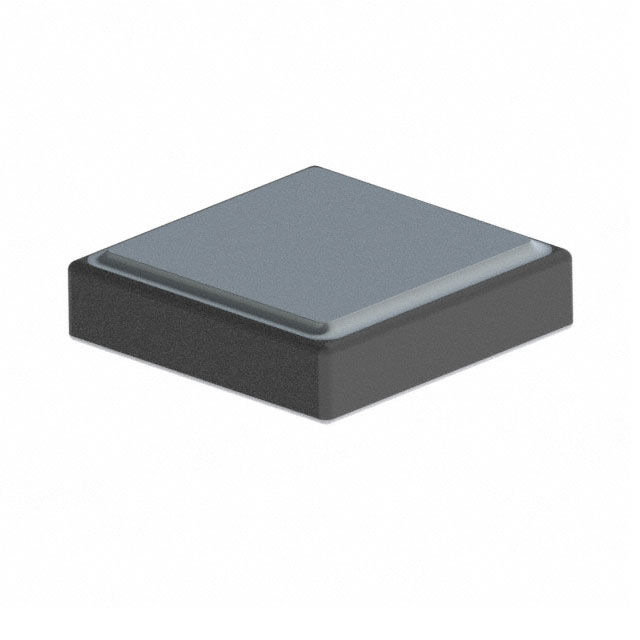

DIODE SCHOTTKY 200V 1A DIE

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Mounting Type	Speed	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]
SMC Diode Solutions SD040SC200A.T	Die	200 V	200 C	20 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	920 mV
SMC Diode Solutions SD040SA60A.T	Die	60 V	150 °C	53 pF	1 A	Surface Mount	200 mA 500 ns	100 µA	Schottky	Die		-55 °C	650 mV
SMC Diode Solutions SD040SB100A.T	Die	100 V	175 ░C	35 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	840 mV	-55 °C
SMC Diode Solutions SD040SB100A.T1	Die	100 V	175 ░C	35 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	840 mV	-55 °C
SMC Diode Solutions SD040SC200A.T2	Die	200 V	200 C	20 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	920 mV	-55 °C
SMC Diode Solutions SD040SA60A.T2	Die	60 V	150 °C	53 pF	1 A	Surface Mount	200 mA 500 ns	100 µA	Schottky	Die		-55 °C	650 mV
SMC Diode Solutions SD040SC200A.T1	Die	200 V	200 C	20 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	920 mV	-55 °C
SMC Diode Solutions SD040SB100A.T2	Die	100 V	175 ░C	35 pF	1 A	Surface Mount	200 mA 500 ns	30 µA	Schottky	Die	840 mV	-55 °C
SMC Diode Solutions SD040SA60A.T1	Die	60 V	150 °C	53 pF	1 A	Surface Mount	200 mA 500 ns	100 µA	Schottky	Die		-55 °C	650 mV
