807-040 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 80POS 0.156
| Part | Termination | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Gender | Card Type | Read Out | Pitch | Pitch | Number of Positions | Number of Positions/Bay/Row [custom] | Termination Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Color | Flange Feature | Contact Type | Contact Material | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

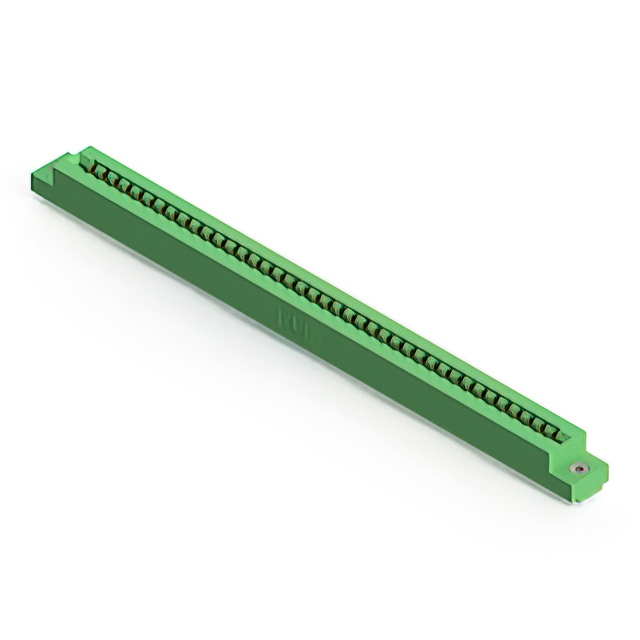

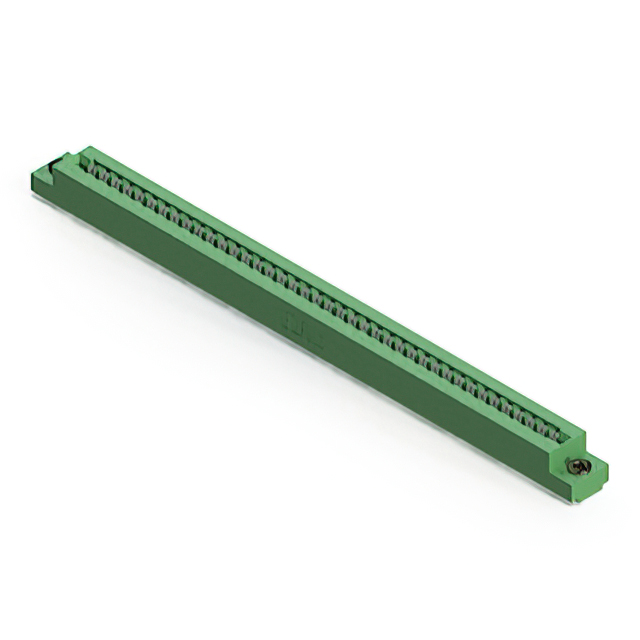

 EDAC Inc. | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | 2 | Through Hole | Green | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Copper Alloy | |||||

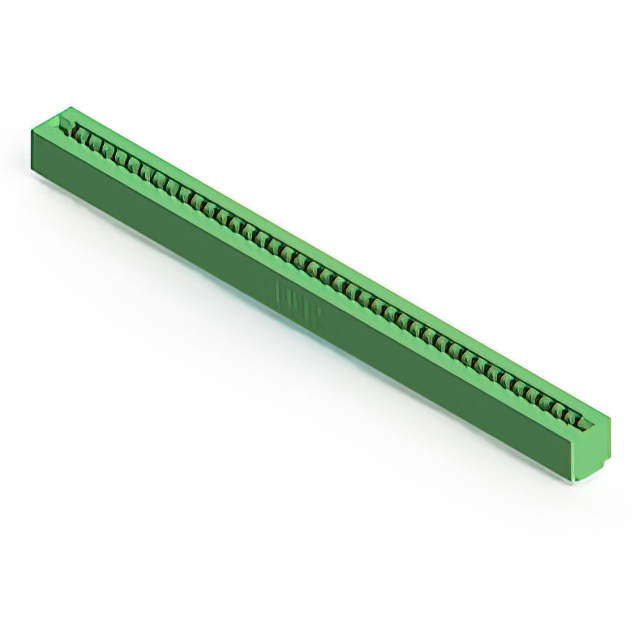

 EDAC Inc. | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 40 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Green | Semi Bellows | Copper Alloy | 1 | ||||||
 EDAC Inc. | Solder Eyelet(s) | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 40 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Through Hole | Green | Floating Bobbin Flush Mount | Semi Bellows | Copper Alloy | 1 | 0.116 " | 2.95 mm | |||||
 EDAC Inc. | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | 2 | Right Angle Through Hole | Green | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | Copper Alloy | |||||

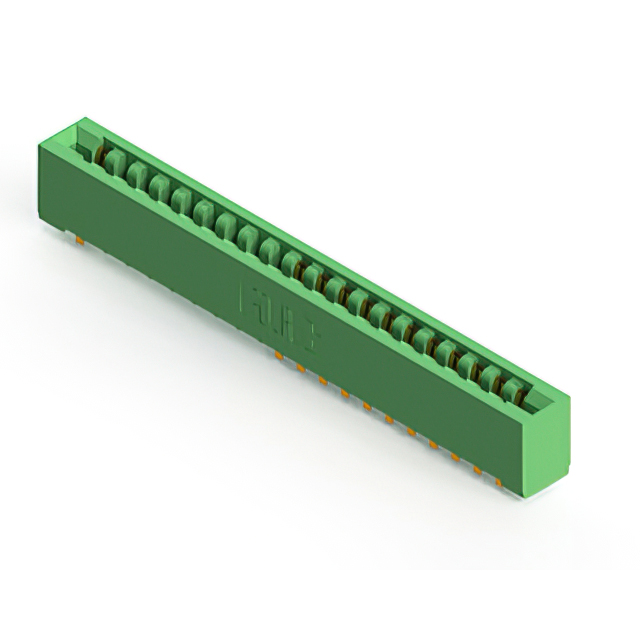

 EDAC Inc. | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Single | 3.96 mm | 0.156 in | 40 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | 2 | Right Angle Through Hole | Green | Semi Bellows | Copper Alloy | 2 | 20 Bay/Row | ||||||
 EDAC Inc. | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Single Edge | Single | 3.96 mm | 0.156 in | 40 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Green | Semi Bellows | Copper Alloy | 1 | ||||||
 EDAC Inc. | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | 2 | Through Hole | Green | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Copper Alloy | |||||
 EDAC Inc. | Solder | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 2 | Right Angle Through Hole | Green | Floating Bobbin Flush Mount | Semi Bellows | Copper Alloy | 0.116 " | 2.95 mm | |||||
 EDAC Inc. | Solder Eyelet(s) | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 2 | Through Hole | Green | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | Copper Alloy | |||||||
 EDAC Inc. | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Non Specified - Dual Edge | Dual | 3.96 mm | 0.156 in | 80 | 40 | 1 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.25 Ám | 10 Áin | 2 | Through Hole | Green | Side Mount Opening Unthreaded | Semi Bellows | Copper Alloy | 0.128 " | 3.25 mm |
