796640 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

4 POS 5.0 MM R/A PLUG,TRM BLK

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Insulation Height	Insulation Height	Screw Size	Torque - Screw	Torque - Screw	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Contact Mating Finish	Mounting Type	Voltage - UL	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Plug Wire Entry	Positions Per Level	Type	Color	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

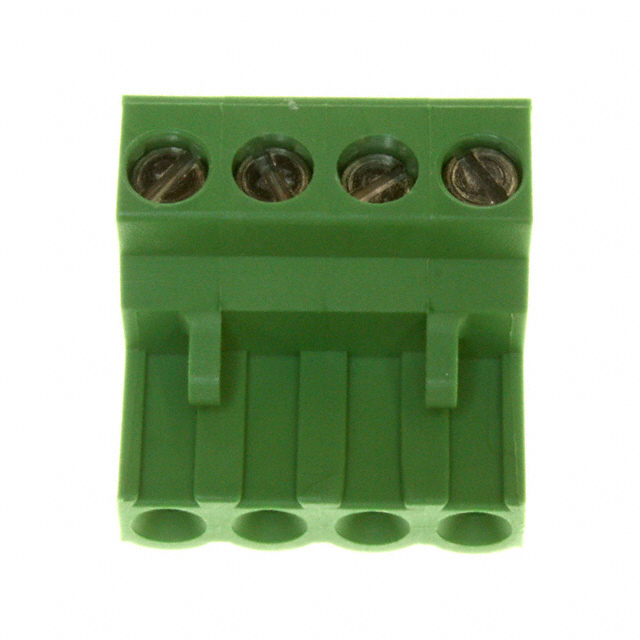

TE Connectivity AMP Connectors 796640-4	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	4	3 mm²	0.05 mm²	180 °	4	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp

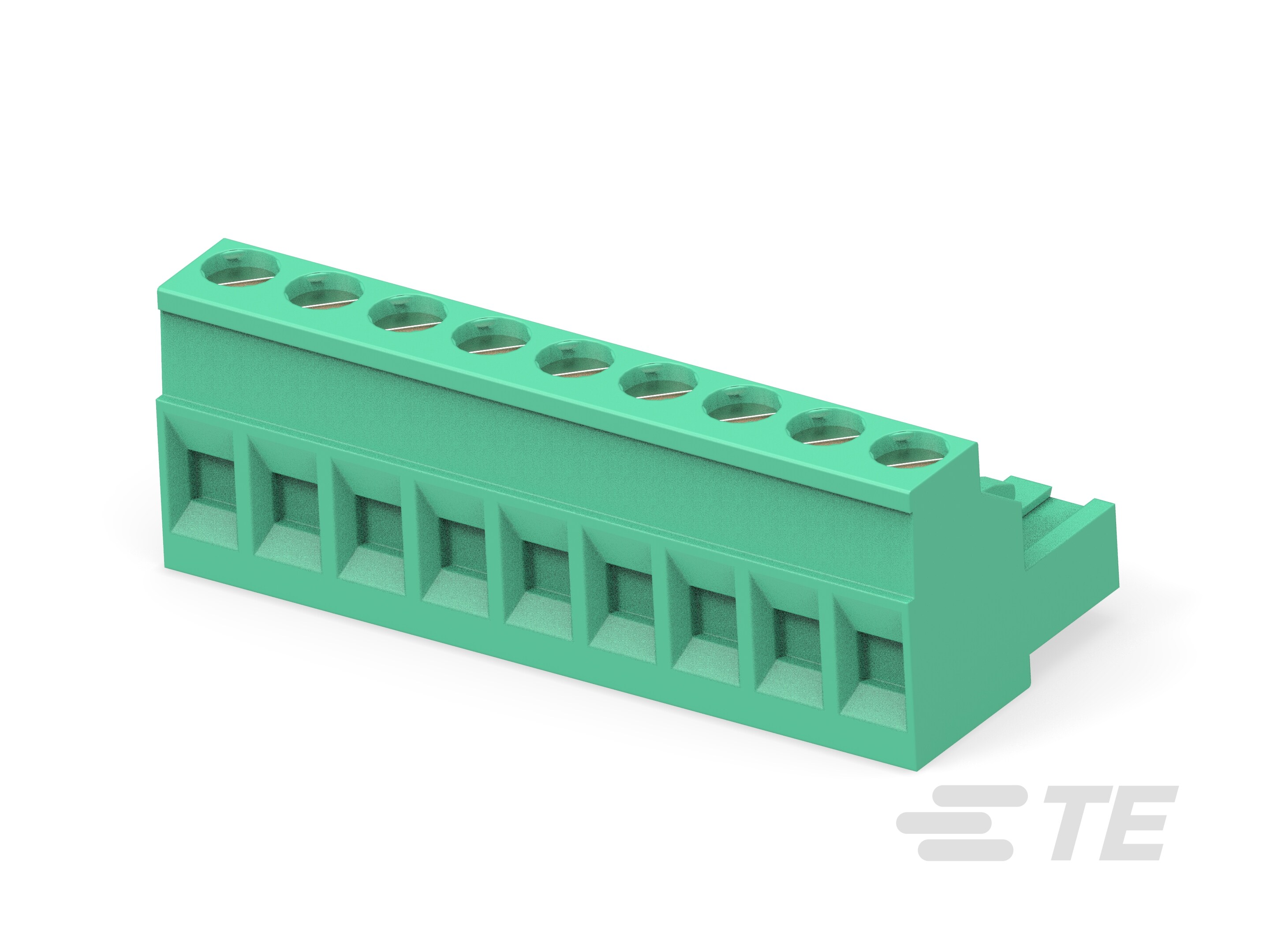

TE Connectivity AMP Connectors 796640-9	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	9	3 mm²	0.05 mm²	180 °	9	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp

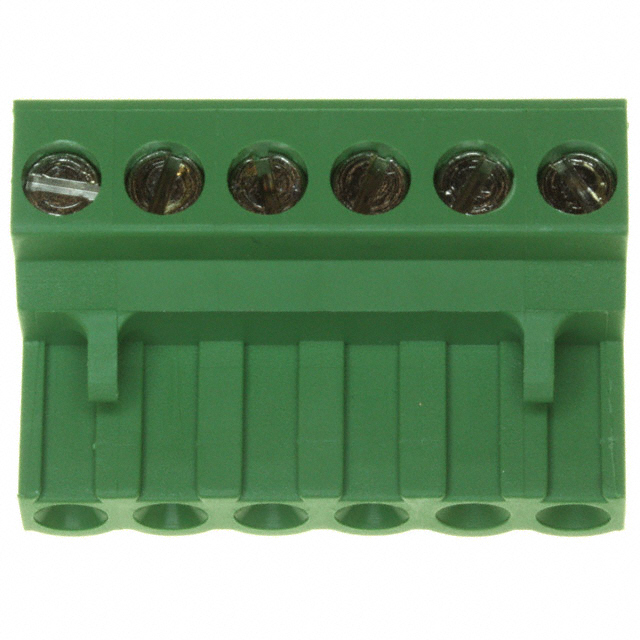

TE Connectivity AMP Connectors 796640-6	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	6	3 mm²	0.05 mm²	180 °	6	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp

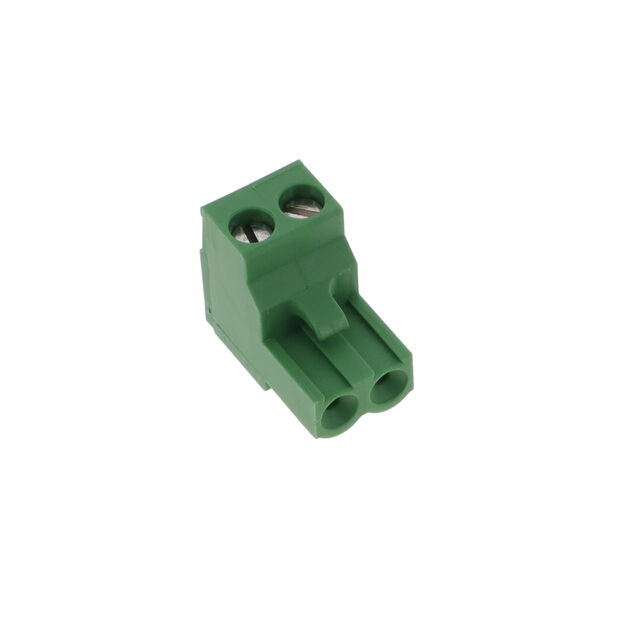

TE Connectivity AMP Connectors 796640-2	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	2	3 mm²	0.05 mm²	180 °	2	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛

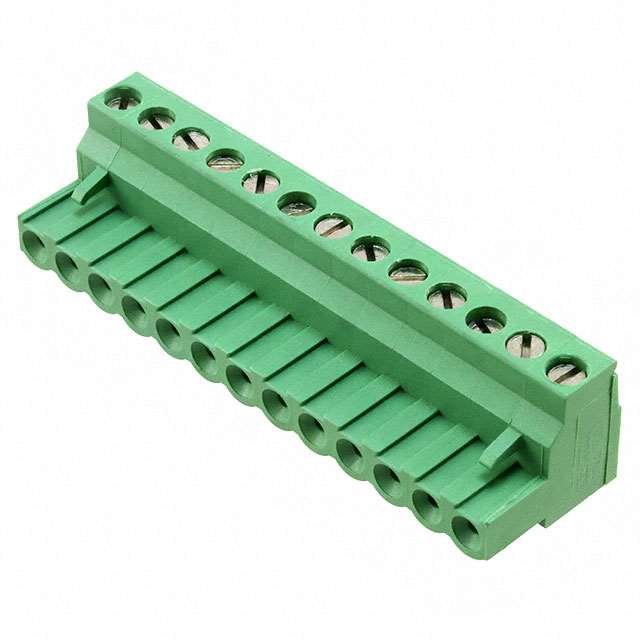

TE Connectivity AMP Connectors 1-796640-3	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	13	3 mm²	0.05 mm²	180 °	13	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp
TE Connectivity AMP Connectors 6-796640-4	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	14	3 mm²	0.05 mm²	180 °	14	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp
TE Connectivity AMP Connectors 1-796640-4	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	14	3 mm²	0.05 mm²	180 °	14	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp

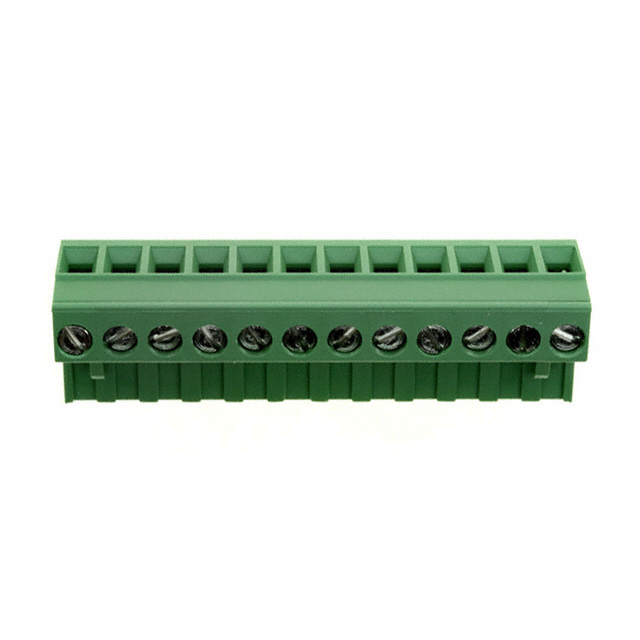

TE Connectivity AMP Connectors 1-796640-2	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	12	3 mm²	0.05 mm²	180 °	12	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 4-796640-7	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	14	3 mm²	0.05 mm²	180 °	14	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp
TE Connectivity AMP Connectors 5-796640-8	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	7 Lb-In	0.79 Nm	Phosphor Bronze	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side) Side Stacking	Tin	Free Hanging (In-Line)	300 V	2	3 mm²	0.05 mm²	180 °	2	Plug Female Sockets	Green	1	-40 C	110 °C	0.197 in	5 mm	Screw - Rising Cage Clamp	3 mm˛	0.05 mm˛
