UWE-12 Series

Catalog

DC DC CONVERTER 12V 72W

Part	Efficiency	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Control Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
Murata Electronics UWE-12/6-Q48PB-C	91 %	2250 VDC	12 V	72 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	75 V	8-DIP Module 1/8 Brick	18 V	6 A	Active High Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/6-Q12NB-C	91.5 %	1.5 kV	12 V	72 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	36 V	8-DIP Module 1/8 Brick	9 V	6 A	Active Low Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/6-Q48P-C	91 %	2250 VDC	12 V	72 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	75 V	8-DIP Module 1/8 Brick	18 V	6 A	Active High Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO

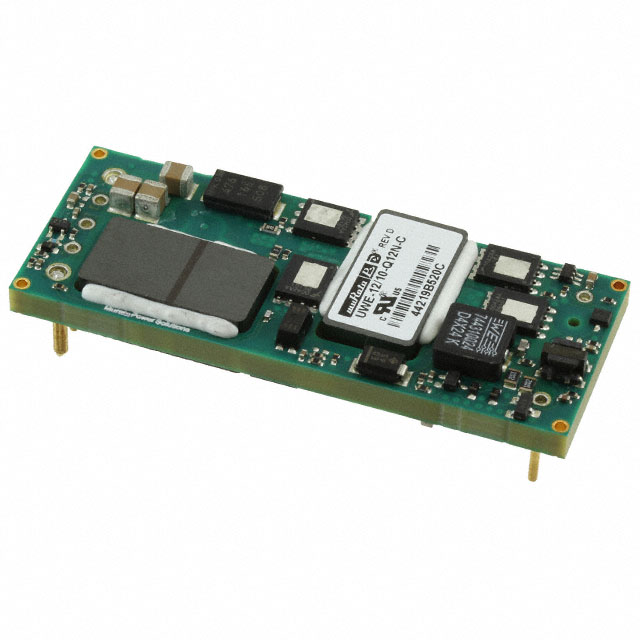

Murata Electronics UWE-12/10-Q12N-C		1.5 kV	12 V	120 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	36 V	8-DIP Module 1/8 Brick	9 V	10 A	Active Low Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO

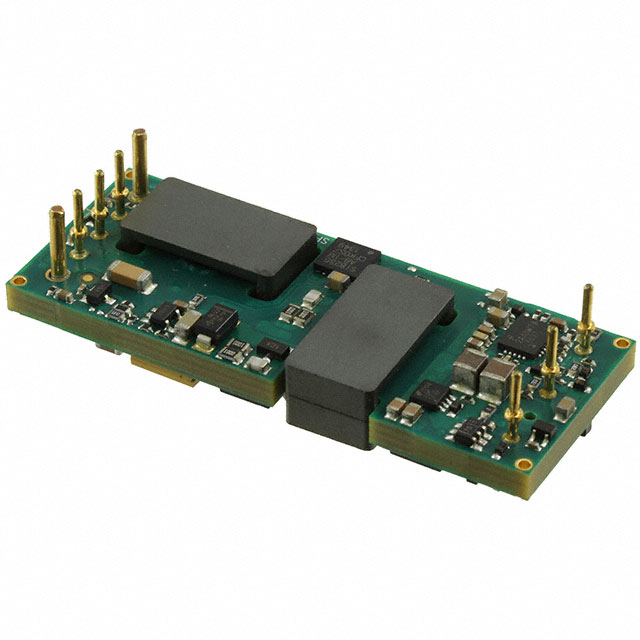

Murata Electronics UWE-12/10-Q12P-C	90 %	1.5 kV	12 V	120 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	36 V	8-DIP Module 1/8 Brick	9 V	10 A	Active High Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/6-Q48N-C	91 %	2250 VDC	12 V	72 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	75 V	8-DIP Module 1/8 Brick	18 V	6 A	Active Low Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/6-Q12N-C	91.5 %	1.5 kV	12 V	72 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	36 V	8-DIP Module 1/8 Brick	9 V	6 A	Active Low Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/10-Q48PB-C	91.5 %	2250 VDC	12 V	120 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	75 V	8-DIP Module 1/8 Brick	18 V	10 A	Active High Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
Murata Electronics UWE-12/10-Q48P-C	91.5 %	2250 VDC	12 V	120 W	Through Hole	ITE (Commercial)	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	75 V	8-DIP Module 1/8 Brick	18 V	10 A	Active High Enable	Isolated Module	85 °C	-40 C	OCP OTP OVP Remote On/Off SCP UVLO
