338169 Series

Catalog

D SUB CONNECTOR, AMPLIMITE HDP-20, AMPLIMITE HDP-20 SERIES, DB, PLUG, 15, METAL, SOLDER ROHS COMPLIANT: YES

Part	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish	Voltage Rating	Mounting Type	Shell Size, Connector Layout	Material Flammability Rating	Current Rating (Amps)	Backset Spacing	Backset Spacing	Connector Style	Number of Positions	Dielectric Material	Features	Flange Feature	Termination	Color	Number of Rows

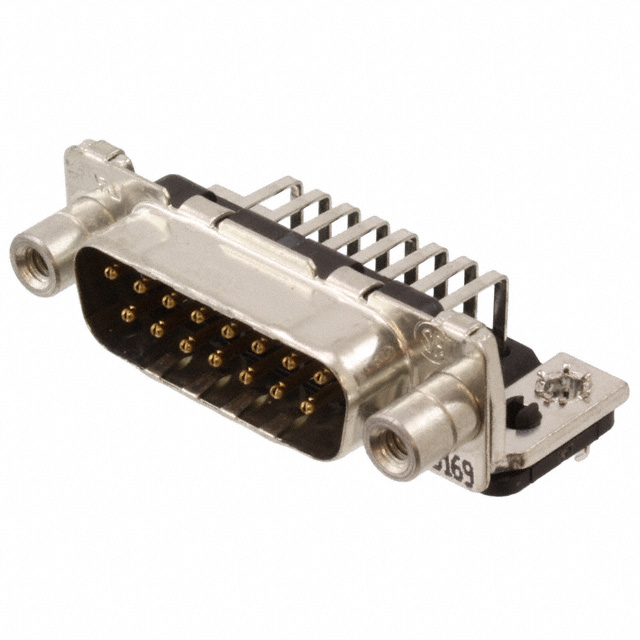

TE Connectivity Raychem Cable Protection 3-338169-2	Phosphor Bronze	Male Pins Plug	105 ░C	-55 °C	Signal	Gold	125 VDC	Through Hole Right Angle	2	UL94 V-0	6 A	0.406 in	10.3 mm	D-Sub	15	Polyester Glass Filled	Board Lock Grounding Indents	Female Screwlock (4-40) Mating Side	Solder	Black	2
TE Connectivity Raychem Cable Protection 5-338169-2	Phosphor Bronze	Male Pins Plug	105 ░C	-55 °C	Signal	Gold	125 VDC	Through Hole Right Angle	2	UL94 V-0	6 A	0.406 in	10.3 mm	D-Sub	15	Polyester Glass Filled	Grounding Indents	Housing/Shell (Unthreaded)	Solder	Black	2
TE Connectivity Raychem Cable Protection 2-338169-2	Phosphor Bronze	Male Pins Plug	105 ░C	-55 °C	Signal	Gold	125 VDC	Through Hole Right Angle	2	UL94 V-0	6 A	0.406 in	10.3 mm	D-Sub	15	Polyester Glass Filled	Board Lock Grounding Indents	Housing/Shell (M3)	Solder	Black	2
