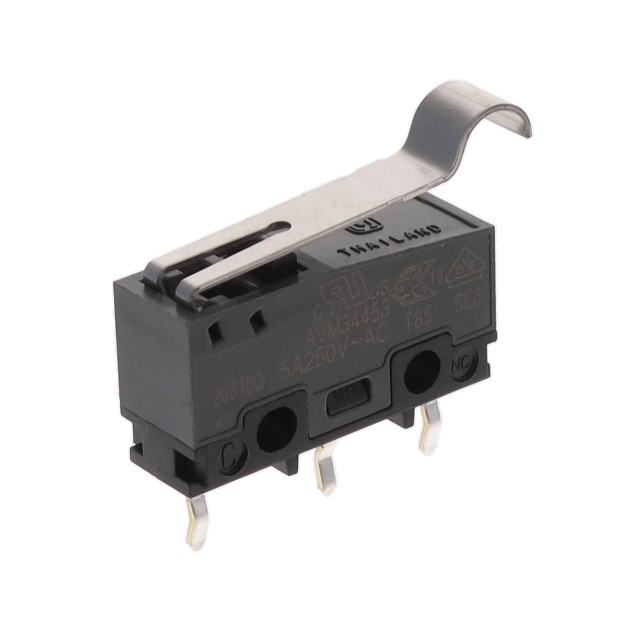

AVM344 Series
Manufacturer: Panasonic Electric Works
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Mounting Type | Voltage Rating - DC | Electrical Life | Circuit | Current Rating (Amps) | Release Force | Ingress Protection | Termination Style | Switch Function | Actuator Type | Operating Position | Operating Position | Overtravel | Overtravel | Voltage Rating - AC | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Differential Travel | Differential Travel | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electric Works | Through Hole | 30 V | 50000 Cycles | SPDT | 5 A | 3.467 gf | IP40 | PC Pin | On-Mom | Lever Simulated Roller | 11.65 mm | 0.459 in | 0.047 " | 1.2 mm | 125 V | 55 gf | -25 °C | 85 °C | 10000000 Cycles | 0.8 mm | 0.031 " | 0.11 in | 2.8 mm |
