EAS-G9 Series

Catalog

SPEAKER 8OHM 3W TOP PORT 88.5DB

Part	Power - Rated	Port Location	Efficiency - dBA	Termination	Efficiency - Testing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Impedance	Efficiency - Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Technology	Shape	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

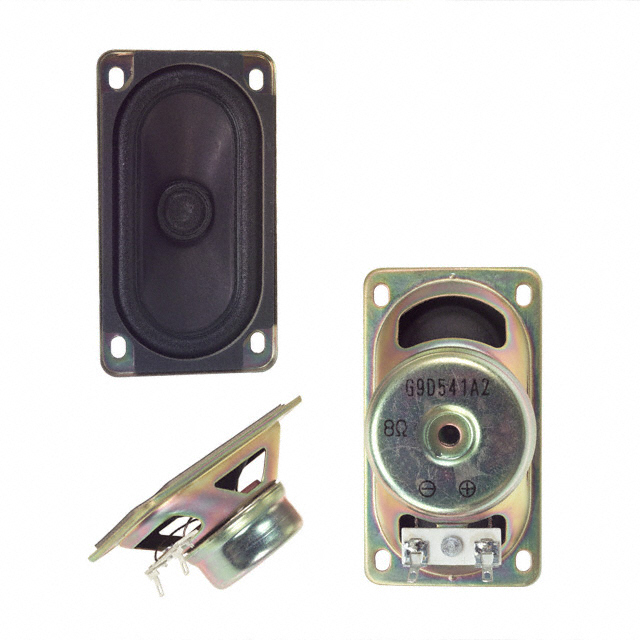

Panasonic Electronic Components EAS-G9D541A2	3 W	Top	88.5 dBA	Solder Eyelet(s)	1W/500mm	40.3 mm	1.587 in	Full Range	8 Ohms	Sound Pressure Level (SPL)	1.988 in	3.563 in	50.5 mm	90.5 mm	Magnetic	Oval Rectangular Frame
Panasonic Electronic Components EAS-G9D550B2	1.5 W	Top	87 dBA	Solder Eyelet(s)	1W/500mm			Full Range	16 Ohms	Sound Pressure Level (SPL)	1.969 in	3.543 in	50 mm	90 mm	Magnetic	Oval Rectangular Frame	0.984 in	25 mm
