9009-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

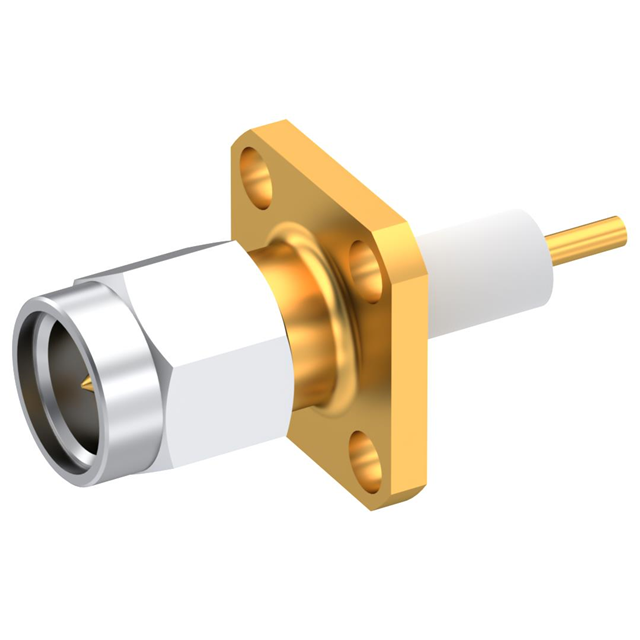

SMA / STRAIGHT PLUG RECEPTACLE M
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Dielectric Material | Fastening Type | Connector Style | Mounting Feature | Features | Frequency - Max [Max] | Connector Type | Center Contact Material | Contact Termination | Mounting Type | Shield Termination | Number of Ports | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | -65 ░C | 165 °C | 500 | Gold | Polytetrafluoroethylene (PTFE) | Threaded | SMA | Flange | Extended Insulation | 18 GHz | Plug Male Pin | Beryllium Copper | Solder | Panel Mount Through Hole | Solder | 1 | 50 Ohms | Gold |
