430097 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

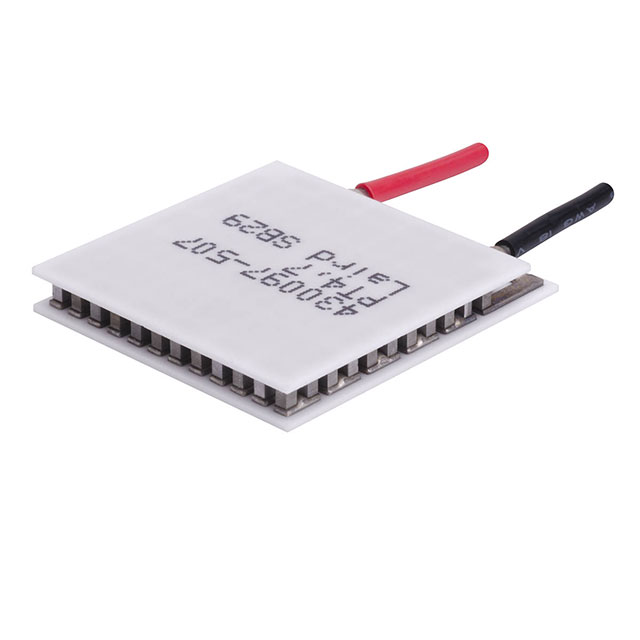

PELTIER MOD 34X30X4.14MM 3.8A
| Part | Operating Temperature | Current - Max [Max] | Voltage - Max [Max] | Qmax @ Th | Number of Stages | Delta Tmax @ Th | Resistance | Height [z] | Features | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 80 °C | 3.8 A | 8.1 V | 18.4 W | 1 | 67 °C | 1.95 Ohms | 4.14 mm | Lead Wires Non-Sealed | 34 mm | 30 mm |
