9412-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

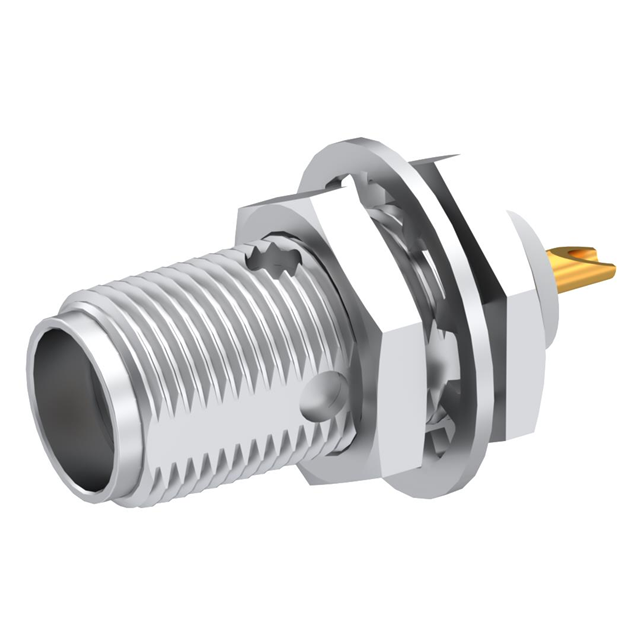

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Connector Style | Fastening Type | Shield Termination | Housing Color | Contact Termination | Center Contact Material | Number of Ports | Frequency - Max [Max] | Mounting Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Bulkhead - Front Side Nut | SMA | Threaded | Solder | Silver | Solder Cup | Beryllium Copper | 1 | 18 GHz | Panel Mount | 50 Ohms | Female Socket Jack |
