NJ03 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

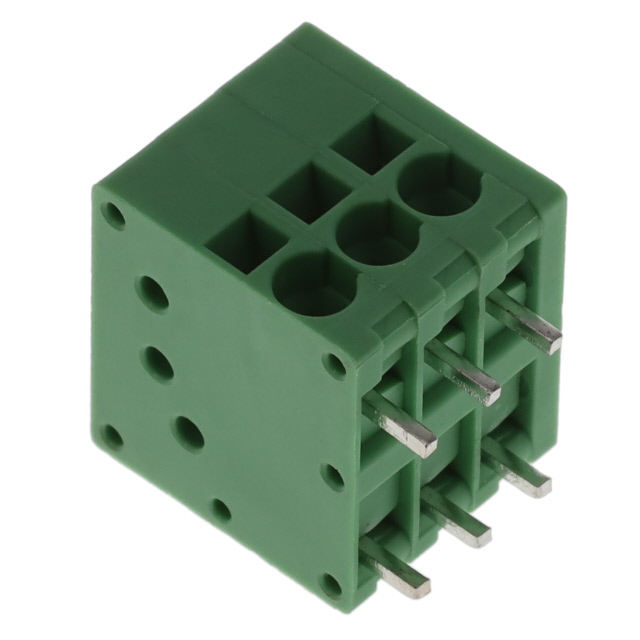

TERM BLK 3POS SIDE ENT 3.5MM PCB
| Part | Mating Orientation | Housing Material | Number of Levels | Pitch [x] | Pitch [x] | Wire Gauge [Min] | Wire Gauge [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current | Positions Per Level | Voltage | Color | Mounting Type | Wire Termination | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | Horizontal with Board | Thermoplastic | 1 | 3.5 mm | 0.138 in | 16 AWG | 24 AWG | -40 °C | 115 °C | 10 A | 3 | 300 V | Green | Through Hole | Push-In Spring Screwless - Leg Spring | Stainless Steel |
Amphenol Anytek | Horizontal with Board | Thermoplastic | 1 | 5 mm | 0.197 in | 12 AWG | 24 AWG | -40 °C | 115 °C | 3 | 300 V | Through Hole | Push-In Spring Screwless - Leg Spring | Stainless Steel |
