09200160 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, SINGLE SIDE ENTRY PG16, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16A

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Housing Finish	Style	Ingress Protection	Thread Size	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Color	Lock Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features

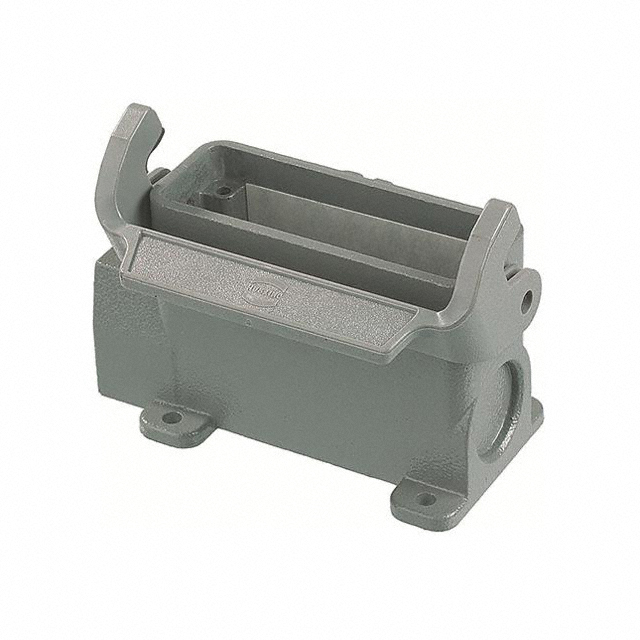

HARTING 09200160251	3.74 "	95 mm	57 mm	2.244 in	1.969 "	50 mm	Powder Coated	Side Entry	IP65 - Dust Tight Water Resistant	PG16	Base - Box Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom
HARTING 09200160443	79.2 mm			70.2 mm	36 mm			Top Entry		PG16	Hood				16 A		Locking Clip (1) on Base Bottom	1.417 "	3.118 in	2.764 in

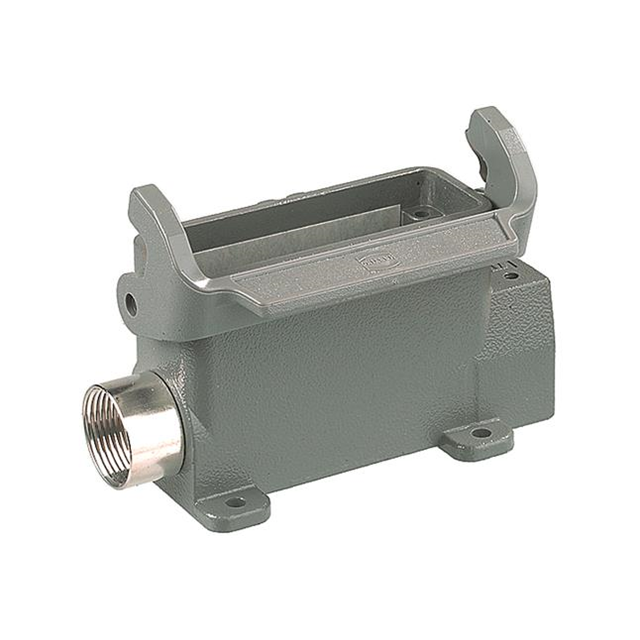

HARTING 09200160221	3.74 "	95 mm	57 mm	2.244 in	1.969 "	50 mm	Powder Coated	Side Entry	IP65 - Dust Tight Water Resistant	PG16	Base - Box Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom				Cover

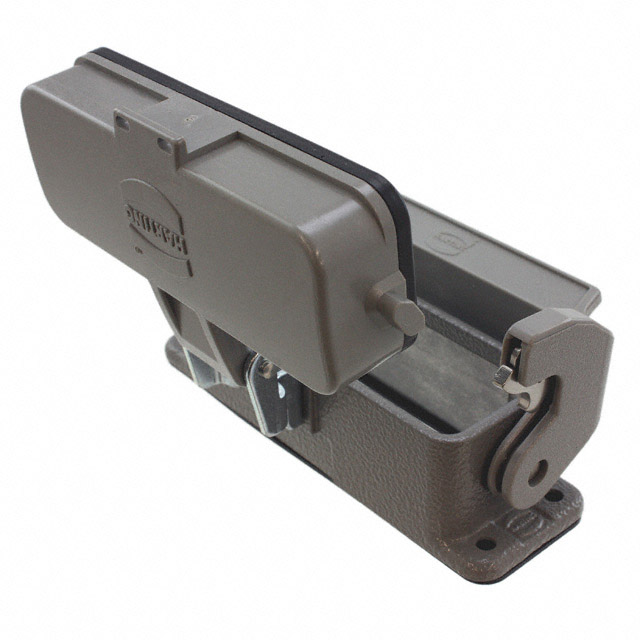

HARTING 09200160321	96 mm			26 mm	29 mm		Powder Coated	Bottom Entry	IP65 - Dust Tight Water Resistant		Base - Panel Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom	1.142 in	3.78 in	1.024 "	Cover
HARTING 09200160252	3.74 "	95 mm	57 mm	2.244 in	1.969 "	50 mm	Powder Coated	Side Entry	IP65 - Dust Tight Water Resistant	PG21	Base - Box Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom
HARTING 09200160222	3.74 "	95 mm	57 mm	2.244 in	1.969 "	50 mm	Powder Coated	Side Entry	IP65 - Dust Tight Water Resistant	PG21	Base - Box Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom				Cover
HARTING 09200160301	96 mm			26 mm	29 mm		Powder Coated	Bottom Entry	IP65 - Dust Tight Water Resistant		Base - Panel Mount	Aluminum Die Cast	125 °C	-40 C	16 A	Gray	Locking Clip (1) on Base Bottom	1.142 in	3.78 in	1.024 "
