MAX17220 Series

Catalog

EVAL BOARD FOR MAX17220

Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Current - Output	Utilized IC / Part	Regulator Topology	Board Type	Supplied Contents	Voltage - Output	Mounting Type	Voltage - Input (Min) [Min]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max)	Number of Outputs	Topology	Output Configuration	Package / Case	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Function	Supplier Device Package	Frequency - Switching

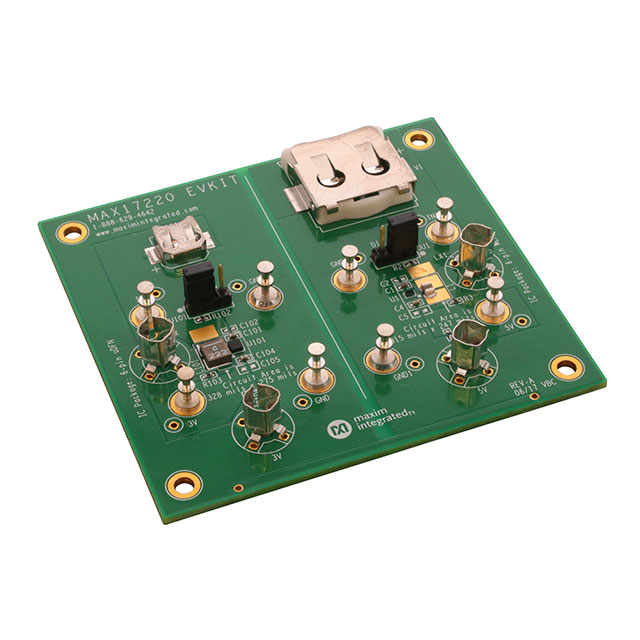

Analog Devices Inc./Maxim Integrated MAX17220EVKIT#	DC/DC Step Up	5.5 V	0.4 V	2	Non-Isolated	100 mA	MAX17220	Boost	Fully Populated	Board(s)	3 V 5 V

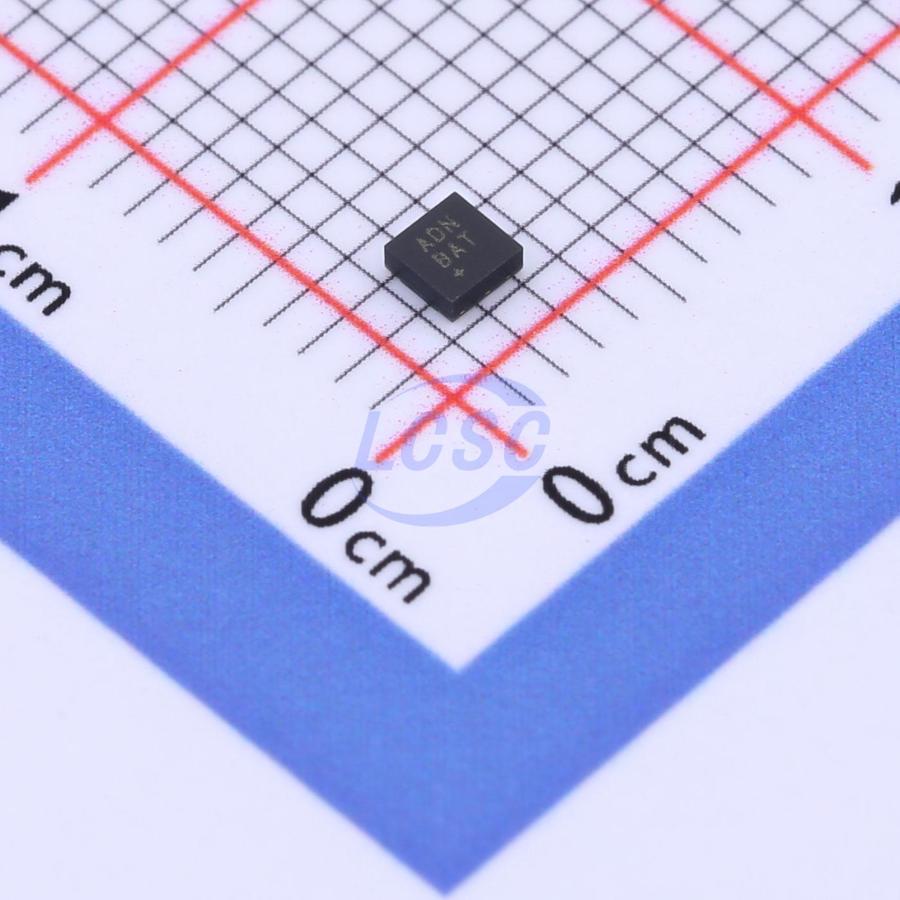

Analog Devices Inc./Maxim Integrated MAX17220ELT+						225 mA						Surface Mount	0.4 V	Adjustable	85 °C	-40 °C	5 V	1	Boost	Positive	6-WDFN	1.8 V	5.5 V	Step-Up	6-µDFN (2x2)	2.5 MHz
Analog Devices Inc./Maxim Integrated MAX17220ALT+T						225 mA						Surface Mount	0.4 V	Adjustable	125 °C	-40 °C	5 V	1	Boost	Positive	6-WDFN	1.8 V	5.5 V	Step-Up	6-µDFN (2x2)	2.5 MHz
Analog Devices Inc./Maxim Integrated MAX17220ELT+T						225 mA						Surface Mount	0.4 V	Adjustable	85 °C	-40 °C	5 V	1	Boost	Positive	6-WDFN	1.8 V	5.5 V	Step-Up	6-µDFN (2x2)	2.5 MHz
