FGN.0M Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 2POS GOLD CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Shell Size - Insert | Termination | Mounting Type | Connector Type | Shell Material | Orientation | Ingress Protection | Current Rating (Amps) | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insert Material | Applications | Number of Positions | Shell Finish | Primary Material | Features | Shielding | Fastening Type | Color | Contact Finish - Mating | Cable Opening | Cable Opening | Contact Size | Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Contact Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 200 °C | -55 C | Brass | 302 | Crimp | Free Hanging (In-Line) | Plug Male Pins | Aluminum Alloy | N (Normal) | IP68 - Dust Tight Waterproof | 10 A | 39.4 µin | 1 µm | Polyetheretherketone (PEEK) | Aerospace Automotive Aviation Military | 2 | Nickel | Metal | Coupling Nut | Shielded | Threaded | Gray | Gold | 8 mm | 0.315 in | |||||||||

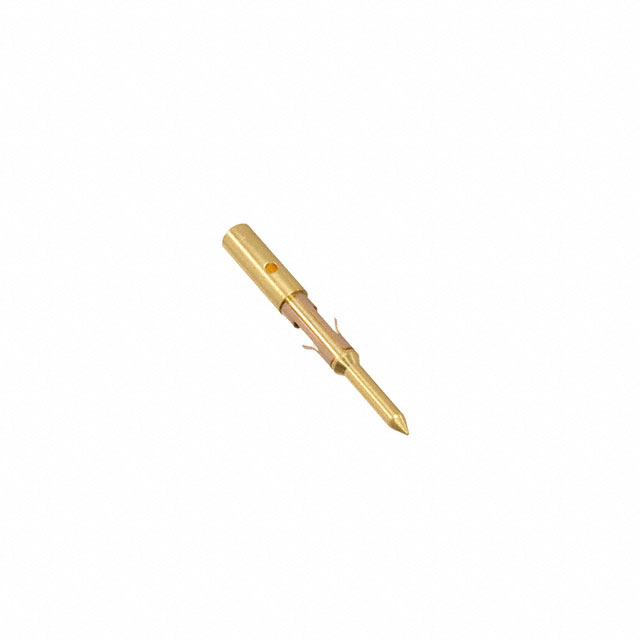

 LEMO | Brass | 0.9 mm | Signal Machined | 1 Ám | 39.4 Áin | Gold | 24 AWG | 20 AWG | Pin | Crimp |
