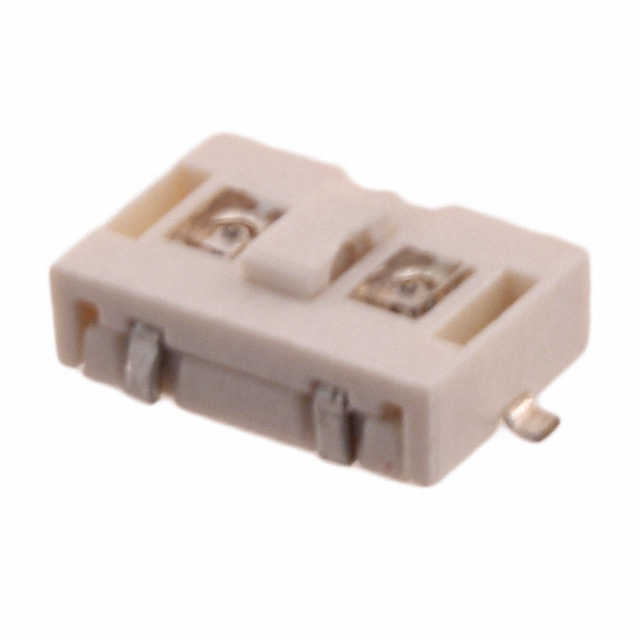

TL3200 Series

Manufacturer: E-Switch

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; LED; 1.6N

Part	Mechanical Life	Switch Travel	Actuator Material	Illumination Type, Color	Mounting Type	Switch Function	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Illumination Voltage (Nominal)	Illumination	Contact Rating @ Voltage	Outline [y]	Outline [x]	Operating Force	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit

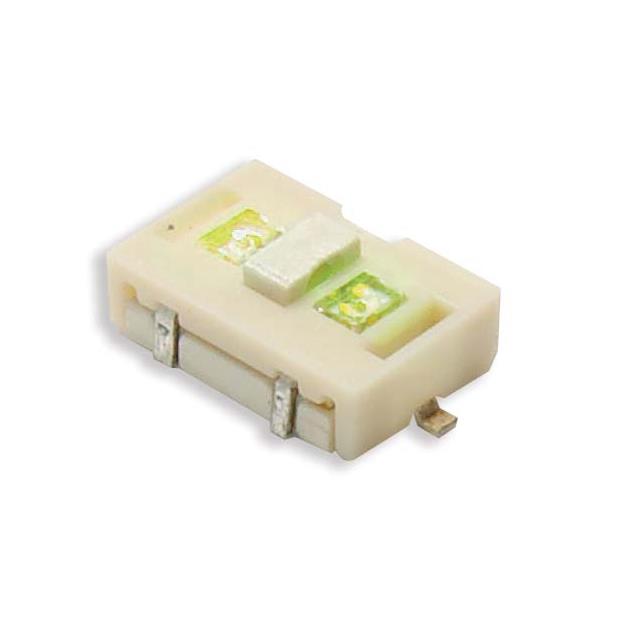

E-Switch TL3200AF160GYQ	30000 Steps	0.25 mm	Liquid Crystal Polymer (LCP)	Green/Yellow LED	Surface Mount	Off-Mom	2.5 mm	Top Actuated	2.3 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
E-Switch TL3200AF160GRQ	30000 Steps	0.25 mm	Liquid Crystal Polymer (LCP)	Green/Red LED	Surface Mount	Off-Mom	2.5 mm	Top Actuated	2.3 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
E-Switch TL3200AF160WBQ	30000 Steps	0.25 mm	Liquid Crystal Polymer (LCP)	Blue/White LED	Surface Mount	Off-Mom	2.5 mm	Top Actuated	3.7 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
E-Switch TL3200AF160BBQ				Blue/Blue LED	Surface Mount	Off-Mom	2.5 mm	Top Actuated	3.7 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
E-Switch TL3200AF160RRQ	30000 Steps	0.25 mm	Liquid Crystal Polymer (LCP)	LED Red/Red	Surface Mount	Off-Mom	2.5 mm	Top Actuated	2.3 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
E-Switch TL3200AF160BRQ	30000 Steps	0.25 mm	Liquid Crystal Polymer (LCP)	Blue LED Red	Surface Mount	Off-Mom	2.5 mm	Top Actuated	2.3 VDC 3.7 VDC	Illuminated	0.05 A 12 VDC	4.5 mm	6.8 mm	160 gf	Gull Wing	85 °C	-25 °C	Rectangular Button	SPST-NO
